Lock Surgeon new commercial door handle and new deadbolts for steel warehouse doors, storefront doors & office doors come in a variety of grades, styles and functions. Typically Grade 1 is the strongest with extensive testing done for heavy use and often used in government offices, hospitals and high-use door access systems. Grade 2 handles and deadbolts are more common and used extensively in commercial applications such as warehouses, offices, apartments, storefronts and general commercially constructed buildings.
With Lock Surgeon's commitment to quality and over 30yrs experience in the commercial hardware industry we have learned what product functions such as: entry, passage, storeroom and institutional are necessary to be kept in stock and/or on our service trucks.
Mobile New Commercial Handles & Deadbolts Services in Edmonton South and area:
Southeast Edmonton, Southwest Edmonton, Millwoods, Terwillegar, Jasper Place, Claireview, Bonnie Doon, Strathcona, Glastonbury, Eaux Claires, Balwin, Pembina, Beverly, Ottwell, Pleasantview, Summerside, Windermere and others.
Also providing mobile service to surrounding South Edmonton:
Strathcona County, Leduc County
Lock Surgeon New Commercial Handles & Deadbolts Edmonton Service Centre Shop
Lock Surgeon Shop can be found:
South of Argyll Rd and 82nd ave. North of Whitemud Freeway, west of 17th st. and east of Gateway BLVD. Lock Surgeon shop is easy to find as it is located on the west side of 75 street @ 5738 75 St NW, Edmonton, AB, T6E2W6. Lock Surgeon shop has a giant padlock balloon on top of the building and is located within the McIntyre Centre.
5738 75 Street NW, Edmonton, Alberta, T6E2W6
5738 75 Street NW, Edmonton, Alberta, T6E2W6
Click the link to find a location or service provider nearest you:
Edmonton South East
5738 75 Street
Locksmith Shop
Edmonton North West
17812 118 Ave
Locksmith Shop
Lock Surgeon Edmonton South Additional Service Areas
Calgary
2020 32 Ave NE
Locksmith Shop
Click Yellow Links Below for Detailed Information
Click the link below to view Commercial Handle & Deadbolt Repair Services:
Edmonton New Commercial Handle & New Commercial Deadbolt Products Presented in "Like" Groups For Easy Reference.

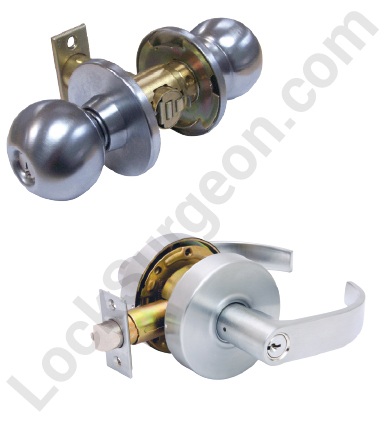

Visit our service centre to view door ball knob handles, lever entry handles, grip sets, deadbolts, push-button digital entry systems, peep holes, door viewers in a variety of colours and functions. Lock Surgeon also supplies hinges, door frames and door slabs. Lock Surgeon stocks a large variety of door hardware solutions for warehouse doors, office doors & storefront doors. We also have door handles and panic bars for restaurants & warehouses. If its new commercial door knobs and deadbolts and specific handles then Lock Surgeon's parts and service centre is here to help.
Edmonton South In-store Sales and Service Parts Counter
LF Series Grade 1 heavy-duty, quality lever handles used in institutional, government and high-use applications
LF Series Leversets:
ANSI/BHMA A156.2 series 4000, Grade 1 certified. Latch is solid brass with 1/2" throw. Reversible for RH of LH applications. UL/cUL listed for fire rated openings. Roses are wrought brass or bronze. Backset 2-3/4" or 2-3/8". Faceplate adjustable for flat or beveled doors 2-1/4" x 1-1/8". Door adjustable from 1-3/8" to 2". Strike is 4-7/8" x 1-1/8" ASA. Cylinder supplied with SC$ 6 pin keyway, IC core option accepts 6 or 7 pin Best syle cores. Compatible with LSDA C500 cylinders as well as many other retrofit and high security brands. Case - Corrosion treated heavy gauge, cold-rolled, steel mechanisms, rose is 3-1/2" diameter. Lever length 5-1/4" long.
LF2000 - Entrance/Office:
Pushing and turning inside button locks outside lever requiring use of key until button is manually unlocked. Pushing inside button locks outside lever until unlocked with a key or inside lever is turned. Inside lever retracts latch.
LF2100 - Passage:
Both levers always retract latch.
LF2200 - Privacy:
LF2400 - Storeroom:
Outside lever never retracts latch. Entrance by key only. Inside lever always retracts latch.
LF2500 - Classroom:
LF2800 - Classroom Intruder:
Outside and inside cylinders lock outside lever. Inside lever always retracts latch.
LF2900 - Institutional:
Neither lever retracts the latch. A key is required in both the inside and outside cylinder to retract the latch.
Benefits of a "clutch" lever:
A lever lock with a clutch does not stay rigid when it is locked. The lever moves, just like it does when unlocked. However, it does not retract the latch. This "free-wheeling" feature absorbs torque and can extend the life of a lever lock.
IC Core Option:
Accepts small format IC Cores from KSP, Kaba Peaks, Falcon & Best (Cores not included).
Lock Surgeon's Edmonton South Sales and Service Parts Centres have a variety of commercial ballknobs, lever handles or keyless entry with functions including: entrance lock, privacy for washrooms, storeroom always locked, classroom keyable for locked or passage, institutional double-sided key required from both sides and passage allowing unkeyed easy access.
Adams Rite Deadbolts, Deadlocks & Hookbolts
1850 series Maximum security laminated deadlocks/hookbolts & 2190 series dual force® interconnected deadbolt/deadlatches
1850 Series Maximum Security Laminated Deadlocks/Hookbolts:
Accepts standard mortise cylinder. Steel with corrosion resistant plating. Case size: 1"x6". Faceplates sold separately.
2190 Series Dual Force® Interconnected Deadbolt/Deadlatch:
Interconnected deadbolt and deadlatch operate with a single motion release. Meets the most stringent building code egress requirements. Electrified lever option for access control. Re-handable. Clutched exterior lever trim. Passage mode lever sets available for interior doors. FaceStyle adaptable to faceplate system. Retrofits to MS® prepped doors. Key controlled extension of deadbolt and latch holdback. Positive latching for energy efficiency. ANSI/BHMA Type E82101 Grade 1.
Adams Rite Deadlatches
The Steel Hawk 4300 electrified latch & 4513 series standard duty deadlatch
The Steel Hawk 4300 Electrified Latch:
The easiest way to electrify an aluminum entrance door. Non-handed right out of the box due to it's patented two-way winged technology. Interfaces with existing Adams Rite handles, paddles and the new 4600 designer series handles. Adapts to 12, 16, 24 VDC. All steel construction with stainless steel latchbolts. Retrofits to MS® prepped doors. Direct replacement for 4900/4500/4700 deadlatches using the same strike. Optional locked/unlocked status monitor switch. All steel construction with stainless steel latchbolts. WHI listed, UL 1034. Exceeds ANSI/BHMA Grade 1 requirements.
4513 Series Standard Duty Deadlatch:
Cylinder backset: 7/8", 31/32", 1-1/8" (or 1-1/2" by special order). Case: steel with corrosion-resistant plating 1" x 5-13/16" x depth. Flexibility of traffic control during and after business hours; a reverse turn of the key while bolt is held retracted retains the bolt, to allow two-way traffic for hospitals, banks, stores and other buildings which requiree free entrance at certain times and exit-only at other times. Interchangeable, without stile modification, with any MS1850A or MS1850S deadbolt of same backset and faceplate shape (they do not, however, provide the same maximum security level as the MS® deadbolt). Latch bolt: 1/2" x 1" x 1/2" throw, all metal with hardened steel internal pins. Handing is reversible without special tools. Auxiliary bolt: all metal, deadlocks to latch bolt to prevent case-knife entry. Stocked less faceplate (faceplates come separate).
Adams Rite Deadlatches & Paddle Handles
4900 Series heavy duty deadlatch & deadlatch paddles
4900 Series Heavy Duty Deadlatch:
Flexibility of traffic control and installation is offerend by the 4900 series deadlatches. A reverse turn of the key while bolt is held retracted retains the bolt to allow two-way traffic for applications which require free entrance at certain times and exit-only at other times. Interchangeable, without stile modification, with any MS1850A or MS1850S deadbolt of same backset and faceplate shape. Retrofits to existing 4500/4700 deadlatch preparations; 1-3/4" minimum door thickness required. Cylinder backset: 31/32", 1-1/8" or 1-1/2" only. Latch bolt: 5/8" x 1" x 5/8" throw, solid brass; handing is easily reversible using only a screwdriver.
Auxiliary latch pin: Stainless steel; deadlocks latch bolt to prevent case-knife entry. Case: steel with corrosion-resistant plating 7/8" x 5-13/16". Screw-fastened tube spacer brackets allow for cleaner removal when tab mounting. Strikeplate: standard strike furnished is 4902 for flat jamb where door closes flush or nearly flush. Faceplate: 1" x 6-7/8", both flat and radius faceplates are supplied. Flat faceplates can also be adjusted in the field for right or left hand beveled edge doors. Retrofits: existing latch locks and 8400 series exit devices.
Deadlatch Paddles:
All paddles are reversible. Units for 4500/4700/4900 series latches and include reversible cam disc.
Adams Rite Lever Handles, Paddle & Lever Parts, Bottom Rail & Deadbolt Options
Lever handles, 4590 Series paddle & 4560 Series lever parts, bottom rail & deadbolt options
Lever Handles:
Reversible 4580 Cam Disc: Included with 4560 & 4565 handles. Required to operate 4500/4700/4900 series latches.
4590 Series Paddle & 4560 Series Lever Parts:
For paddles: 26 0188 09, 26 0398 or 91 0060. For Paddles & levers: 4580. For levers: 28 0225, 31 0485.
Bottom Rail & Deadbolt Options:
MS1861: Utilizes the same over centre/pivot locking mechanism as the MS deadlock. For use in the bottom rail of ultra-narrow stile doors and tempered glass doors (which have no stile at all). Use the 1830 when the bottom rail is too shallow to accommodate the MS1861.
MS4070: Offers the longest practical throw for a conventionally projected bolt from a narrow stile. Operates with one-half key turn of any standard mortise type cylinder or cylinder type thumbturn. NOT TO BE USED IN BOTTOM RAIL.
Adams Rite MS Lock & Deadlatch Accessories
MS Lock & deadlatch accessories & parts
Frame bridges, strikes and lock strike conversion plates.
MS Lock & Deadlatch Faceplates:
Face plates for the edge of glass-aluminum doors to cover the edge of a deadlatch or flip-up bolt within the door edge.
Adams Rite Sliding Door, Keyless Entry Locks & Reinforcing Pivot
Sliding door locks, Eforce keyless entry & full surface reinforcing pivot
Sliding Door Locks:
MS1848 deadlock. For narrow stile sliding doors. Bolt: anti-lift/adjustable. Faceplate: full radiused ends. Satin stainless finish. 2331 Deadlock for heavy sliding doors. Backset 1-3/4" only. Bolt: 1/2" x 1-1/2". Strike: 1/8" x 1" x 4-11/16" with 5/8" x 1-5/8" opening. Faceplate: 1" x 5-3/4" flat.
EForce Keyless Entry:
Keypad programmable unit has up to 150 hours including master, supervisor, emergency users & 2 one time codes. For 1-3/4" to 2-1/4" thick left or right hand aluminum, steel & wood doors. Exterior locking trim. 31/32" backsets and greater. Non-handed. three modes: Standard, Operating & Lockout. Free-wheeling lever with clutch. Powered by 4 AA batteries mounted in front cast housing. Device operation is confirmed by both a visual LED light indicator and an audible sound generated by a piezo horn. Measures: 1-3/4"W x 15-3/4"H. Temperature range: -35ºC to +66ºC.
Full Surface Reinforcing Pivot:
Full-surface reinforcing pivot for flush doors. Adds years of life to openings where the hinges or hinge reinforcements have failed. An economical way to solve door sag problems by taking the load off the top hinge and transfer it to screws that are in shear so they will not pull out. Designed with a 1/2" offset to match the pivot point of a 4" wide butt hinge. Zinc plated over steel finish. Heavy-duty 3/16" cold-rolled steel. Supports weights up to 300lbs.
Adams Rite Exit Devices & Parts
Exit devices & 8000 Series exit device parts
Exit Devices:
UL life-safety listed, ANSI/BHMA A153.6 Grade 1.
8099 Active Dummy Bar with Switch: Can be wired normally open or normally closed to operate maglock, alarm, etc. No latching mechanism.
8211 Surface Vertical Rod: For 1-3/4" thick narrow stile glass/aluminum doors with widths of 30" to 36" and heights up to 8'. Requires 2" stile minimum. Will accpet optional rim cylinder. Patented top latching mechanism interlocks door to frame. Adjustable rods encased in countoured covers.
8400 Mortise Exit Device: Fits single leaf aluminum stile glass door, standard narrow stile cutout. 5/8" bolt throw. Minimum stile width is 2". Strike for installations where 1-3/4" door closes flush with jamb. Push bars are extruded anodized aluminum with black ABS end cap. Handing can be reversed.
8000 Series Exit Device Parts:
8800 series: 25 0480, 41 0801 08, 29 0481.
8200 & 8800 series: 31 0265.
8400 series: 41 0801 01, 91 0995 04.

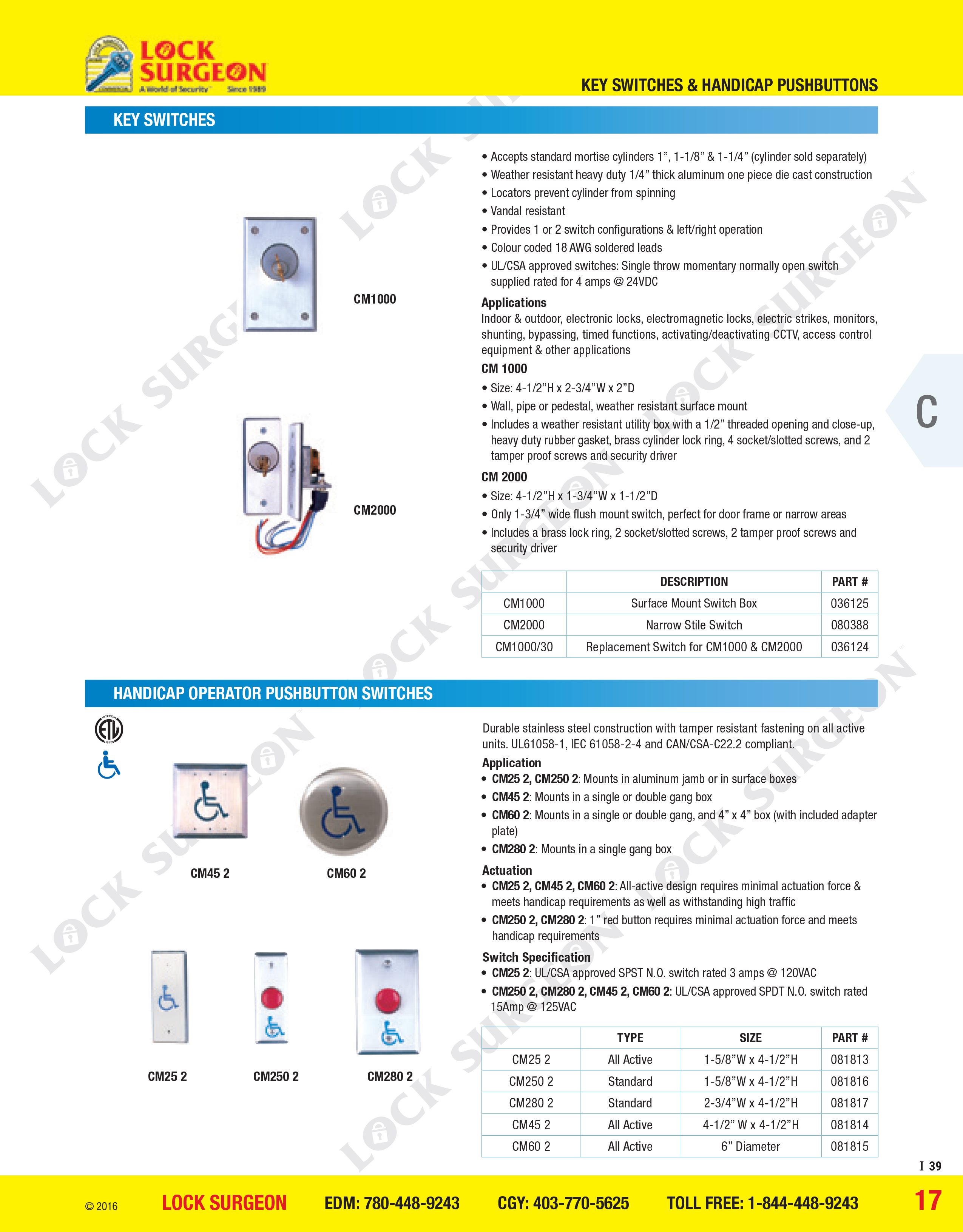

Camden Door Controls Key Switches & Handicap Push-buttons
Key switches & Handicap Operator Push-button switches
Key Switches:
Accepts standard mortise cylinders 1", 1-1/8" & 1-1/4" (cylinder sold separately). Weather resistant heavy duty 1/4" thick aluminum one piece cast construction. Locators prevent cylinder from spinning. Vandal resistant. Provides 1 or 2 switch configurations & left/right operation. Colour coded 18 AWG soldered leads. UL/CSA approved switches: Single throw momentary normally open switch supplied rated for 4amps at 24VDC.
Applications: Indoor & outdoor electronic locks, electromagnetic locks, electric strikes, monitors, shunting, bypassing, timed functions, activating/deactivating CCTV, access control equipment & other applications.
CM 1000: Size: 4-1/2"H x 2-3/4"W x 2"D. Wall, pipe or pedestal, weather resistant surface mount. Includes a weather resistant utility box with a 1/2" threaded opening and close-up, heavy duty rubber gasket, brass cylinder lock ring, 4 socket/slotted screws, and 2 tamper proof screws and security driver.
CM 2000: Size: 4-1/2"H x 1-3/4"W x 1-1/2"D. Only 1-3/4" wide flush mount switch, perfect for door frame or narrow areas. Includes a brass lock ring, 2 socket/slotted screws, 2 tamper proof screws and security driver.
Handicap Operator Push-Button Switches:
Durable stainless steel construction with tamper resistant fastening on all active units. UL61058-1, IEC 61058-2-4 and CAN/CSA-C22.2 compliant.
Application: CMS25 2, CM250 2: Mounts in aluminum jamb or in surface boxes. CM45 2: Mounts in a single or double gang box. CM60 2: Mounts in a single or double gang, and 4"x4" box(with included adapter plate). CM280 2: Mounts in a single gang box.
Acutation: CM25 2, CM45 2, CM60 2: All-active design requires minimal actuation force & meets handicap requirements as well as withstanding high traffic. CM250 2, CM280 2: 1" red button requires minimal actuation force and meets handicap requirements.
Switch Specification: CM25 2: UL/CSA approved SPST N.O. switch rated 3amps at 120VAC. CM250 2, CM280 2, CM45 2, CM60 2: UL/CSA approved SPDT N.). switch rated 15amp at 125VAC.
Detex Hinge Bolts, Fire Rated Alarmed & Delayed Egress Exit Devices
V40 Alarmed & delayed egress exit devices
Hinge Bolts:
Provides hinge-side protection against break-ins. Adds additional locking points, improving holding strength to slow down crowbar attacks. Easy to install. Can be added to almost any outswing door application. Choose the right level of protection with kits of 1 bolt, 2 bolts or 3 bolts. Kits include through-bolt mounting hardware. One piece stainless construction provides superior holding strength. Excellent for exterior application or that doors that get wet.
V40 Alarmed & Delayed Egress Exit Devices:
V40EB: Reduces internal and customer theft while meeting building code requirements. Alarmed 100 decibel exit device powered by standard 9-volt battery. Stainless steel, 3/4" deadlocking Pullman-type latch bolt. Heavy-duty ribbed aluminum rail extrusion. Fits 36" doors, (can be cut down in the field) 1-3/4" to 2-1/4" thick with minimum 2-1/2" stiles. 1/8" turn of mortise cylinder provides dogging of the device. Controls foot traffic, deters unauthorized exits, and prevents loss. Heavy-duty angled end cap. Accommodates all sizes of mortise cylinders with a standard Yale cam; collar is required for 7-pin IC cylinders. Patented back plate and plastic strike locator provide paperless template for perfect alignment of unit on door and frame. Field selectable key rearm or 2 minute auto rearm. Visual and audible arming indicators status are field selectable.
V40EE: All the features of the V40EB above but with delayed egress. Powered by regulated power supply that delivers a constant 24VDC of filtered and regulated voltage at a rated load of 1A. Fire alarm input can be connected at power supply. Remote signal output and remote bypass input standard. Includes delayed egress panic bar, 24VDC filtered and regulated power supply. 3' conduit loop and door sign that says "PUSH UNTIL ALARM SOUNDS, DOOR CAN BE OPENED IN 15 SECONDS". 9V batter provides alarm function only in case of power failure.
Reduces internal and customer theft while meeting building code requirements. Alarmed 100 decibel exit device powered by standard 9volt battery. Controls foot traffic, deters unauthorized exit and prevents loss. The V40EE has a feature that delays egress, can be wired into fire alarm.
Don-Jo Deadbolt Security Strike, T-Strike & Door Hardware
Security strikes, T-strike & flip-up bolts for steel doors and glass-aluminium stationary doors
Deadbolt Security Strikes:
Supplied with 3" screws to penetrate frame studs for additional strike strength. Constructed of 13 gauge steel.
'T' Strike:
Constructed of 18 gauge material.
Door Hardware:
1550/1551: Aluminum Door Flush bolt. Radius end. 1550 - 1/8" offset, 1551 - 1/4" offset.
1555: Metal Flush Bolt: UL rated, 3/4" bolt throw, 3/4" rod backset, 12" rod length, 1-1/2" adjustable bolt head. Fits ANSI door & frame prep. Metal doors faceplate: 1"x6-3/4", strike: 15/16"x2-1/4", guide:1"x2".
1557: Wood Flush Bolt: UL rated, 3/4" bolt throw, 3/4" backset. Wood door faceplate: 1"x6-3/4", strike: 15/16"x2-1/4". Door strength maintained by corner reinforcement plate.
1603: Door Flip Guard Ball bearing design secures flip guard to lock door from interior for additional security.
2080: Gravity Door Coordinator UL rated. Drop arm type gravity door coordinator. Adjustable. Field reversible.
HDCC2512: Heavy Duty Crash Chain. Heavy duty steel chain prevents door from opening wide when caught by high winds.
In-floor Closers & Door Holders
BTS80 In-floor door closer & Electromagnetic door holder
BTS80 Floor Closer:
Replacement body is 13-7/16"L x 2-3/8"D. Cover not included. Mechanical backcheck at approximately 70". Selectable delayed action between 175º and 75º. Delayed action is functional when hold open is not engaged. Selectable multipoint hold open between approximately 75º and 175º. Adjustment for hold open between 75º and 105º. Accommadates doors weighing up to 660lbs and 4'-6" wide interior and 4'-0" exterior. Closer adjustment in cement case provides lateral and longitudinal adjustment of 1/4" and height adjustment of 5/32".
Electromagnetic Door Holder:
Dual voltage capability reduces stocking requirements. Low current draw allows saving on power supplies and backup batteries. Optional extension rods fit on standard catch plate to accommodate deeper door to wall conditions. Low residual magnetism allows easy release of door. All electrical values +10% to -15%. Floor & wall mounted styles. Can be manually pulled from hold open position. Silent opertion. Holding force 15-25lbs nominal. Can be manually pulled from hold open position with 25-40 maximum hold open force. Voltage: 24VAC/DC or 120VAC. Amps: .015. Meets ADA requirements with minimal spring force door closers. ANSI A156.15 Grade 1. UL and cUL listed. Finish in Satin Chrome.
EM504: Semi flush wall mount. Oveall projection: 3-1/2".
EM508: Surface wall mount. Overall projection: 4-1/16".
Falcon Single Cylinder Deadbolts & Accessories
Grade 2 single cylinder deadbolt with thumbturn, thumbturn deadbolt with indicator for washroom use
Grade 2 Cylinder Deadbolt With Thumbturn:
ANSI/BHMA Standard A156.5-2001, Grade 2. UL listed, A label, 3hrs. Deadbolt thrown or retracted by key or by turn. Bolt automatically deadlocks when fully thrown, 1" projection. Door thickness: 1-3/8" to 1-3/4". Backset: 2-3/8" x 2-1/4" faceplate. Non-handed. Accepts all small format interchangeable style cores (SFIC). Comes with less core.
Thumbturn Indicator Lock:
Deadbolt lock used to provide privacy. When locked from inside the room, deadbolt locks the door, and a visual "In Use" sign appears. When bolt is retracted, message reads "Vacant". Emergency key opens lock from outside when required. Finish: Satin Chrome. Replacement Emergency Key: Schlage 61 509 EZ# 090455.
Deadbolt will accept IC-core and indicator lock commonly used on washrooms.
Gallery Elbow Catch, Cylinder Pull, Flush Bolt & Wall Stops
Cabinet elbow catch, cylinder pull, flush bolt & cast wall stops
Cabinet Elbow Catch:
Made of cast brass or bronze. Ideal for use on the inactive leaf of cabinet doors. Supplied with screws. Catch size: 1-3/8" x 5/8". Strike size: 1-3/16" x 5/8".
Cylinder Pull:
1-1/4" hole for mortise or rim cylinder. Cast brass or bronze base material. 2-3/4"H x 1-7/8"L.
Flush Bolt:
Base material: brass. Face size: 1" x 6-3/4". Keeper size: 1" x 2-1/4". Guide: 7/8" x 2-1/4". Extension length: 12" (length measured from centre of operating lever to end of bolt when in retracted position).
Cast Wall Stops:
All fasteners included. GSH231: - for use with most locksets. GSH250B: - For use on locksets with push-in locking button.
Gallery Floor Stops, Door Pulls & Plates
Floor Stops, Door Pulls & Plates
Floor Stops:
GSH200 C26D: Low profile door stop. Material: cast. Size: 1-3/4"D x 1-1/8"H.
GSH201: Door Stop riser. Material: cast. Raises GSH200 or GSH218 higher for larger door gaps.
GSH218: Standard profile door stop. Material: cast. Size: 1-3/4"D x 1-3/8"H.
GSH281: Standard profile. Heavy duty floor stop made of cast brass or bronze. Size: 2-3/4"H x 2-5/8"L x 1-5/8"W. Machine bolts with shields supplied.
Door Pulls & Plates:
4009: Pull Handle Projection: 1-1/2". Centre: 9". Material: 3/4"D.
80A & 81A: Protective Plates .050 thickness for 80A & 81A plates. Fastening: screw type mounting supplied with oval undercut head sheet metal screws standard, all holes countersunk. Beveling - all push plates supplied beveled four sides standard. 80A packed individually in a cardboard box to protect while shipping.
Glynn-Johnson Door Holders & Door Stops
Door Holders & Door Stops
Heavy Duty Door Holders & Stops
For heavy-duty applications. Non-handed. 900 series: Channel is surface-mounted to the door, most often with sex bolts, and the jamb bracket is surface mounted to the jamb, requiring minimal door and frame preparation. Can be used in conjunction with most surface-applied door closers. Can be mounted for openings ranging from 85º to 110º.
Hold-Open Function: Holds the door open at a predetermined position permitting an unobstructed traffic flow through the opening. Can easily be turned on or off by simply rotating the serrated knob on the bottom of the channel to engage the hold open mechanism, when flipped over it acts as a stop and shock obsorber. Tension on the hold-open mechanism can be adjusted to offset air currents or other exterior conditions.
Stop Function: Provides a reliable method for shock absorbing capability. Can be used on fire doors.
Door Stop:
Kick Down Holder: Units provide an economical method to hold open doors. Cast of durable iron. Non-marring rubber shoes have corrugated bottoms to provide secure grip; rubber shoe is securely fastened with screw, shoes are easily replaced when worn. Door-to-floor clearance: 2" or less. Plate height: 2-1/4". Plate width: 1-7/16". Meets ANSI/BHMA 156.16, L11381.
GMS Mortise & Rim Cylinders
Mortise & Rim Cylinders
Mortise Cylinders
Exact pinning specifications as original systems. Solid brass construction. Satin Chrome finish.
M100: drilled & pinned 5. Includes AR cam.
M118: drilled 6, pinned 5. Includes both AR & STD cams.
Rim Cylinder:
Exact pinning specifications as original system. Solid brass construction. Tailpiece converts between horizontal & vertical positions. Screw-on retaining cap design. Satin chrome finish. Drilled 6, pinned 5.
Quality mortise and rim cylinders that are stocked on Lock Surgeon trucks to provide the best lock-pinning product available in standard operation. Our sales and Service Centres also stock this item as it is very popular. Available in Schlage C, Weiser, Corbin 60, Schlage C-K, Yale 8, Corbin L4, Sargent RA, Sargent LA, Sargent LA-LD, Sargent L-DL, Schlage E, Schlage F and Yale GA.
GMS Knob/Lever/Deadbolt Cylinders, Restricted Keyway Cylinders & Key Blanks
Knob Lever Deadbolt Cylinders Restricted Keyway Cylinders & Key Blanks
Knob/Lever/Deadbolt Cylinders:
Exact pinning specifications as original systems. Solid brass construction. Fits Schlage knobs, levers, deadbolts and Yale levers. Drilled for 6-pin. Supplied with 5 tailpieces. Screw-on retaining cap design. Satin chrome finish.
MX Series Cylinders - Proprietary Keyways:
Signed dealer agreement required. Anti-picking mushroom pins. Schlage pinning specifications. Proprietary keyway. Zero-bitted. Cylinders: Sold less key blanks.
K001 MX: Easy retrofitting of Schlage deadbolt, knob or lever cylindrical locksets and Yale levers.
Very common keyways available in this quality key and knob product that comes in 5-pin or 6-pin configurations. Keyways avaiable are: Corbin 60, Corbin L4, Corbin D1, Sargent LA-LD, Schlage C, Schlage E, Schlage C-K, Weiser, Yale 8, Sargent RA, Sargent LA, Schlage F and Yale GA. MX-11 series cylinders are a security keyway that is also available through Lock Surgeon.

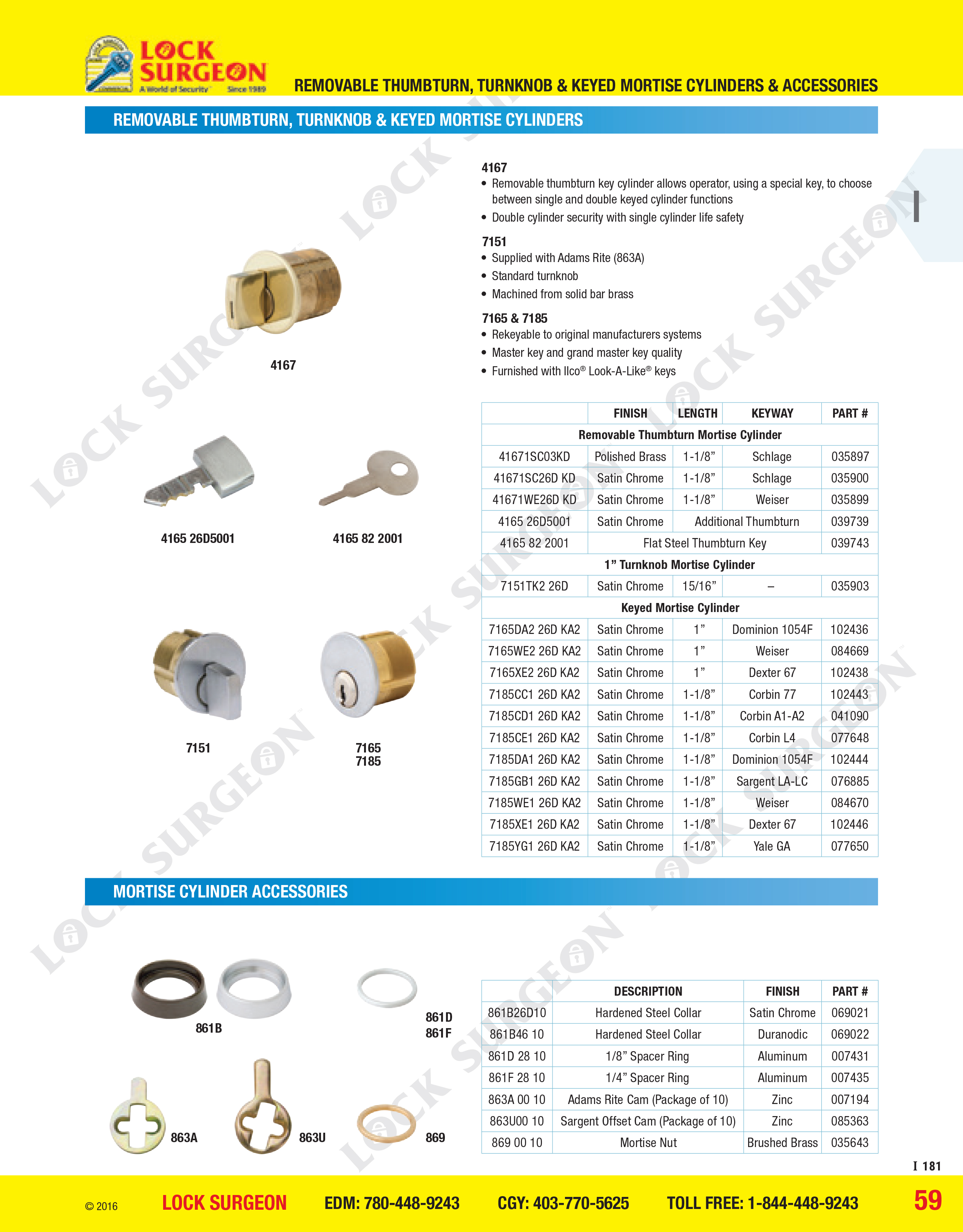

Ilco Removable Thumbturn, Turnknob & Keyed Mortise Cylinders & Accessories
Removable Thumbturn, Turnknob & Keyed Mortise Cylinders & Accessories
Removable Thumbturn Turnknob & Keyed Mortise Cylinders
4167: Removable thumbturn key cylinder allows operator, using a special key, to choose between single and double cylinder functions. Double cylinder security with single cylinder life safety.
7151: Supplied with Adams Rite (863A). Standard turnknob. Machined from solid bar brass.
7165 & 7185: Rekeyable to original manufacturers systems. Master key and grand master key quality. Furnished with ILCO Look-A-Like keys.
Bump Halt Kits, Rim Locks, Chains & Patio Locks
Bump Halt Kits Rim Locks Chains & Patio Locks
Bump Halt® Kits:
Bump Halt® Bump resistant cylinder technology resists the transfer of force from the bump key to the pins. Innovative patent pending design. Kits enable the conversion of a new existing ILCO or LSDA cylinders to be "bump resistant". Cost efficient and effective. No special tools and/or machining is required. Conversion kits contain 10 pins, 10 springs and instructions. One spring and one pin will provide resistance to "bumping"; adding an additional pin and spring will increas the security of the cylinder.
Rim Locks:
Door thickness: 1-1/4" to 2-1/4". Completely reversible. 220 53 51 - Has latch hold back function. 530 & 535 - Jimmy & pry proof rim locks.
Chain & Patio Locks:
201 - Door chain lock. Brass finish. 300 59 51 KADF8 - 1054UN steel stamped key. 5 brass disc tumblers with 100 combinations. KA DF8 Keyway.
5000 Series Lever Set - Grade 1 Heavy Duty
5000 Series Grade 1 heavy duty, quality lever handles used in institutional, government and high-use applications
5000 Series Leversets:
ANSI/BHMA A156.25 Series 4000, Grade 1 certified. Vandal resistant clutch models available. Non-handed. Latchbolt: 2-3/4" backset, UL listed 3hr fire rated. Door Thickness 1-9/16" to 2-1/8". Cylinder: supplied with SC4 6 pin keyway, IC Core option accepts 6 or 7 pin Best style cores. Compatible with LSDA C500 cylinders as well as many other retrofit and high security brands.
5000 - Entrance/Office:
C5000 - Entrance/Office with Clutch:
Same operation as 5000.
5100 - Passage:
Both levers always retract latch.
5200 - Privacy:
5400 - Storeroom:
Outside lever never retracts latch. Entrance by key only. Inside lever always retracts latch.
C5400 - Storeroom with Clutch:
Same operation as 5400.
5500 - Classroom:
IC Core Option:
Accepts small format IC Cores from KSP, Kaba Peaks, Falcon & Best (Cores not included).
Lock Surgeon's Sales and Service Parts Centres have a variety of commercial ballknobs, lever handles or keyless entry with functions including: entrance lock, privacy for washrooms, storeroom always locked, classroom keyable for locked or passage, institutional double-sided key required from both sides and passage allowing unkeyed easy access.
Available in a variety of functions including: entrance lock, privacy for washrooms, storeroom always locked, classroom keyable for locked or passage, institutional double-sided key required from both sides and passage allowing unkeyed easy access. Visit Lock Surgeon's Locksmith store to view commercial hardware on display.
4000 Series Knob-set Grade 1 Heavy Duty
Grade 1 heavy duty commercial knob-set built to withstand high use areas, often used in schools, government buidings, warehouses, apartments and commercial buildings
4000 Series Knobsets:
ANSI/BHMA A156.25 Series 4000, Grade 1 certified. UL listed 3hr fire rated 10C/UBC 7-2 positive pressure. Cylinder supplied with SC4 6 pin keyway, IC Core option accpets 6 or 7 pin Best syle cores. Compatible with LSDA C500 cylinders as well as many other retrofit and high security brands. Latchbolt: 2-3/4 backset, UL listed, 2-3/8" UL listed latch available. Door thickness: 1-3/8" to 2". Non-handed.
4000 - Entrance/Office:
4100 - Passage:
Both levers always retract latch.
4200 - Privacy:
4400 - Storeroom:
Outside lever never retracts latch. Entrance by key only. Inside lever always retracts latch.
4500 - Classroom:
Outside lever is locked and unlocked with a key in the outside cylinder. The inside lever always retracts latch.
IC Core Option:
Accepts small format IC Cores from KSP, Kaba Peaks, Falcon & Best (Cores not included).
This knob-set is Lock Surgeon's commercial hardware choice when providing a knob-set that will withstand rough use. Available in keyed entrance knob function, privacy washroom function, storeroom always locked, double-sided keyway for institutional use locking on both sides, classroom use allowing for locked and unlocked function and passage for allowing easy of use without key. Visit Lock Surgeon's Sales and Service parts centre to view commercial handle and deadbolt displays.
Grade 1 Latches and Accessories For Commercial Handles
Parts to repair broken or worn Grade 1 & 2 commercial handle knobs or commercial grade levers
Grade 1 Latches & Accessories:
5 Link - use in conjunction with a 2-3/4" latch to achieve 5" backset.
LFTDP - Includes outside rose, rose liner & inside rose to adapt a LF series lever for a 2-1/4: door.
Grade 2 Latches, extension Link & Cylinder:
KEL5 - Use in conjunction with 2-3/4" latch to achieve 5" backset.
Bring your part needs to one of the Lock Surgeon service parts centres to match the correct latch style and length to your needs or repair or replace commercial door hardware parts as needed
Grade 2 Commercial Duty Lever Set
Grade 2 lever a standard lever for a variety of commercial applications
800 Series "Vancouver" Leversets:
ANSI/BHMA A156.2-2003, Series 4000, Grade 2 certified. UL listed 3hr fire rated, UL 10C/UBC7-2 positive pressure. Door thickness: 1-3/8" to 2". Latchbolt 2-3/4" backset, UL listed, 2-3/8" UL listed latch available. Non-handed. Cylinder supplied with SC4 6 pin keyway, IC Core option accepts 6 or 7 pin Best style cores. Compatible with LSDA C500 cylinders as well as many other retrofit and high security brands. "Vancouver" design: Two-step rose.
800 - Entrance/Office:
C800 - Entrance/Office With Clutch:
Same operation as 800.
810 - Passage:
Both levers always retract latch.
820 - Privacy:
830 - Exit:
Lever inside, always retracts latch. Blank plate outside.
840 - Storeroom:
Outside lever never retracts latch. Entrance by key only. Inside lever always retracts latch.
C840 - Storeroom With Clutch:
Same operation as 840.
850 - Classroom:
C850 - Classroom With Clutch:
Same operation as 850.
870 - Communicating:
Key in either lever locks or unlocks that lever.
890 - Institutional:
Clutch lever:
This Grade 2 lever is used by Lock Surgeon's locksmith shop service technicians to resolve most commercial, warehouse, storeroom and office lever handle needs. Excellent lever for new construction or to replace broken or worn existing commercial business handles.
800 Series Edmonton & Calgary Lever-set Design
Strong, reliable clutched commercial lever handles
800 Series "Edmonton" & "Calgary" Leversets:
ANSI/BHMA A156.2-2003, Series 4000 Grade 2 certified. UL listed 3hr fire rated, UL 10C/UBC7-2 positive pressure. Door thickness: 1-3/8" to 2". Latchbolt 2-3/4" backset UL listed, 2-3/8" UL listed latch available. Non-handed. Cylinder supplied with LSDA C500 cylinders as well as many other retrofit and high security brands. "Edmonton" design: flat-face rose. "Calgary" design: flat-face rose with curved lever.
C800 - Entrance/Office With Clutch:
810 - Passage:
Both levers always retract latch.
820 - Privacy:
Pushing inside button locks outside lever unitl inside lever is turned. Emergency tool can be used to unlock outside lever. Inside lever always retracts latch.
C840 - Storeroom With Clutch:
Outside lever never retracts latch. Entrance by key only. Inside lever always retracts latch.
C850 - Classroom With Clutch:
Clutch lever:
This commercial lever has a clutch to mitigate vandalism. The handle will turn easily even in the locked position. The Calgary commercial lever handle design has a rounded more elegant appearance. Available in keyed entrance function, keyed storeroom function - always locked, privacy handle for washrooms, classroom can be switched from always locked to passage and passage handle allows for easy use without lock. Lock Surgeon's shop parts service technician can review your warehouse, apartment or business needs with you to ensure you receive the correct commercial lever handle of choice.
Grade 2 Commercial Duty Knob-set 100B Series
Commercial duty knob-set Grade 2
100B Series Knobsets:
ANSI/BHMA A156.2 Series 4000, Grade 2 certified. UL/cUL listed for fire rated openings. Cylindrical lock housing made of cold rolled steel mechanisms, zinc dichromated for corrosion resistance. Strike: 4-7/8" x 1-1/4". Door adjustable from 1-3/8" to 1-3/4". Backset 2-3/4", 2-3/8" available. Cylinder supplied with rekeyable SC4 6 pin keyway standard, IC Core option accepts 6 or 7 pin Best syle cores, *WR5 rekeyable 6 pin, keyed 5 pin, accepts pins up to WR size 7. *WR5 - For key system, please purchase locks less cylinder and add Ilco 15995WE26D OB cylinder (EZ# 084667).
100 - Entrance/Office:
110 - Passage:
Both levers always retract latch.
120 - Privacy:
130 - Exit Lock:
Knob inside, blank plate outside.
140 - Storeroom:
Outside lever never retracts latch. Entrance by key only. Inside lever always retracts latch.
150 - Classroom:
190 - Institutional:
Both levers fixed. Entrance by key in either side.
For a wide variety of keyways other than the stocked SC4 of WR5 keyway, please see our LSDA C500 & Ilco 15995 Universal Cylinders.
This go-to handle is used most often by our shop service locksmith, to secure commercial buildings, warehouses, offices and business doors. Available in common functions, door locking entrance, passage convenient non-locking handle, privacy handle for washrooms, exit-only handle has ball-knob on one side only. Storeroom handle requires key to open handle from exterior at all times. Classroom function handle can be set for passage or locked functions. Institutional style handle set requires key to be used to enter or exit room for either side. Visit Lock Surgeon's sales and service parts counter to purchase the quality grade 2 commercial handle that you need to match your building door requirements.
LSDA Aluminium-Glass Door Replacement Hardware-bolts, Deadlatches, Deadlatch Lever & Paddle Handles
Maximum security bolts, deadlatches, deadlatch lever handles and deadlatch paddle handles
Maximum Security Bolts:
Maximum security bolt provides for excellent security even when a gap exists between the door & frame. Laminated bolt provides more strength than one piece design. Replacement for existing aluminum door flip & hook bolts. Case size: 7/8" x 6-13/16". Flip-bolt: 5/8" x 1-3/8" throw for sliding doors. Hook-bolt: 5/8" x 13/16" throw for sliding doors. Includes both clear & brown anodized aluminum faceplates.
Deadlatches:
Replacement for existing aluminum door latches. Case size: 7/8 x 6-13/16". Latch-bolt: 5/8" x 1" x 5/8" throw. Deadpin prevents the latch to be "dogged" during store opening times. Simply hold latch in and turn key backwards to "dog" the latch. Includes both clear & brown anodized aluminum faceplates.
Deadlatch Lever Handle:
For aluminum door latches on both outswing and inswing doors. Reversible cam disc included. Both Push & Pull stickers included which allows for: Push to Right, Push to Left, Pull to right or Pull to Left.
These are the components most often used to solve storefront and apartment door locking needs. Lock Surgeon's sales and service parts centre maintain a stock of this basic inventory on their warehouse parts department.
LSDA Dummy, Thumbturn & Rim Cylinders
Dummy mortise cylinders, thumbturn mortise cylinders, rim cylinders
D100 10B Dummy Mortise cylinders:
1" Mortise dummy cylinders in Duranodic or Satin Chrome finishes.
T1002 3 Thumbturn Mortise Cylilnders:
Mortise thumbturn cylinders sizes: 1", 1-14" or 1-1/8" in finishes including: Bright Brass, Duranodic & Satin Chrome.
R200C60 26D Rim Cylinders:
Horizontal or vertical, tailpiece installation. 5 pin standard, drilled for 6 pin application. Rekeyable to original manufacturer's systems. Supplied with trim ring, mounting plate & connecting screws. Breakoff tailpiece allows for cylinders to be used for different door thicknesses. Composite (Comp) works with Schlage C-K & 1170C (Hollymade).
Go-to components used for glass-aluminium doors stocked in Lock Surgeon's sales and service centres for fast repairs and rekeys.
Sargent 10-Line Heavy Duty Lever & 8-Line Knobs
Brand specific Sargent 10-line heavy duty lever and 8-line knobs
10 Line Heavy Duty Levers:
Cycle test exceeds 5 times A156.2 Grade 1 requirements. Abusive locked lever torque without entry gained exceeds 1.5 times A156.2 Grade 1. For doors 1-3/4" to 2". Non-handed. Cylindrical housing steel, zinc dichromate finish. Levers are solid cast. Roses are heavy wrought brass and bronze. Multiple thru-bolt positions. Latchbolt stainless steel 1/2" throw.
71 Electromechanical (Fail Secure):
Power off, locks outside lever, inside lever always allows egress. Deadlocking latch; key retracts latch. Voltage requirements: 24VDC; 250mA at 24VDC. Provided with ElectroLynx® 8-Pin connector.
Storeroom:
Latchbolt by lever inside or key outside. Outside lever rigid at all times.
Entrance:
Classroom:
Latch by either lever unless outside lever is locked by key. Key in outside lever locks or unlocks outside lever and retracts latch. Inside lever always operative.
Passage:
Latchbolt by either lever.
8 Line Heavy Duty Knobs:
Heavy duty T-Zone construction with interlocking latch and aligning tubes. ANSI A156.2 Series 4000 Grade 1 certified. 1-3/8" thick door adjustable to 1-3/4". Accurate alignment, smooth operation and reveribility of the lock without disassembly of knob and cylinder. Latch: Seamless brass tube with stainless steel springs for longer life. ANSI A-115.2 Strike: 1-1/4" lip standard.
Entrance:
Sargent knob and lever available to match your current handle and lever specifications.
Sargent 7-Line Medium Duty Levers Grade 2
Lever handle, Grade 2 Sargent ASSA-ABLOY
7 Line Medium Duty Levers:
Exceeds 2.5 times ANSI/BHMA A156.2 Grade 2 cycle requirements. Non-handed. Solid feel and precise lever action. For doors 1-3/8" to 1-3/4". Cylindrical housing steel, zinc dichromate finish.
Storeroom:
Latchbolt by lever inside or key outside. Outside lever rigid at all times.
Entrance:
6500 Line Medium Duty Levers:
Meets ANSI/BHMA A156.2 Grade 2 cycle requirements. Non-handed. For doors 1-3/8" to 1-3/4". Cylindrical housing steel, zinc dichromate finish. Wrought rose, cast lever.
Storeroom:
Latchbolt by lever inside or key outside. Outside lever rigid at all times.
Entrance:
Latchbolt by either lever unless outside lever is locked by push/turn button in inside lever. Turn button must be released manually. Key only retracts latchbolt when outside lever is locked by push button.
Passage:
Latchbolt by either lever.
Privacy:
Latch retracted by either lever unless outside lever is locked by push button in inside lever.
Lever handle available in storeroom function always locked, entrance function keyed locked, classroom function locked or passage and passage for convenient access and egress.
Sargent 6-Line Medium Duty Knobs & 8200 Series Mortise Locks
Medium duty knobs, Sargent 6-line, 8200 series mortise locks by Sargent
6 Line Medium Duty Knobs:
Fits doors from 1-3/8" to 1-3/4" thick. Certified ANSI A156.2 Series 4000 Grade 2. OB knob design. Knob & rose are wrought brass/bronze.
8200 Series Mortise Levers:
For doors 1-3/4" thick. 2-3/4" backset. Case 12 gauge heavy duty wrought steel, zinc dichromate plated. Outside front plate 8" x 1-1/4". Latchbolt: stainless steel 3/4" projection one-piece, anti-friction reversible latch. Hand - easily reversible. Certified to and exceeds ANSI A156.13, Series 1000, operational Grade 1 and security Grade 1 with all standard trims.
BP8205:
Body only.
8271 24VDC:
Solenoid activated mortise lock. Power to the solenoid, locks outside lever. Key outside retracts latchbolt except when lever outside is locked. Lever outside can only be locked with the solenoid. Lever inside always retracts latchbolt. Auxiliary deadlatch. 24VDC.
LCRX8271 24VDC:
Request to enter/exit signaling switch - monitors inside lever rotation.
6-line medium duty knobs available in satin, chrome and stainless steel finishes and storeroom and entrance function knob-sets.
Sargent 4870 Mortise Deadbolt & 460-480 Series Cylinder Deadbolt
Mortise deadbolt Sargent Grade 1 & Grade 2 deadbolts
4870 Mortise Deadbolts:
Bolt - one piece hardened stainless steel deadbolt with 1" throw. Door thickness 1-3/4", front 4-5/8" x 1-1/8". Non-handed.
Single Deadbolt:
Key outside operates deadbolt. Thumb turn inside operates deadbolt.
Classroom Function:
Key outside operates deadbolt. Thumb turn inside retracts deadbolt, but will not project it.
460 & 480 Series Cylindrical Deadbolts:
For doors 1-3/8" to 1-3/4" thick only. Backset 2-3/4".
Single Deadbolt:
Key outside operates deadbolt. Thumb turn inside operates deadbolt.
460 Series:
bolt - solid brass 5/8" x 13/16" x 1" throw with hardened steel pin. Cylinder housing: steel reinforced and plated.
p class="bold"h5>480 Series:Bolt - solid steel with hardened steel pin insert and nickel silver plating 7/8" x 5/8" x 1" throw. Cylinder housing: Non-ferrous, reinforced, one piece 2-1/2"
16 2153 32D:
Bolt for 480 series.
Match your current Sargent hardware as needed to repair or replece mortise cylindrical deadbolts or standard Grade 1 & Grade 2 deadbolts.
Sargent Keypad Locks & 90 Series Rim-exit Device & Trim
Push-pad Sargent grade 1 lock 90 series rim-exit panic bar
Keypad Locksets:
Keypad made of ultraviolet stable textured material. Operating temperature for keypad is 4ºF to 140ºF. Adjustable unlock time. Over 1,100,000 possible user combinations. 100 users codes. Operates utilizing any one to six digits per code - digits may be repeated or start with 0. "One time" user codes allow visitors one time entry. Entry of three wrong user codes in succession disables all codes for ten seconds. Unit can be put in "passage only" mode at keypad. One master code - assigns emergency, supervisory and user codes. Meets ANSI A156.2 Grade 1 requirements. Operates with 4 "C" alkaline batteries (included). Key override on both models. External battery input connector on under side of keypad in case of battery failure. Typical 40,000 operations per set of batteries. For 1-3/4" thick doors. Infrared link to optional printer (52-2069) shows last fifteen transactions.
90 Series Rim Exit Devices & Trim:
Maximum 4-1/2"(114mm) projection, minimum 2-3/4"(70mm) dogged. Stainless steel springs throughout. ANSI A156.3 Grade 1. UL Listed, UL Listed to Canadian safety standards. Double doors require astragal. For doors: wood or metal; 1-3/4" thick standard, 4-1/8" minimum stile. Mounting supplied standard with wood and machine screws. Chassis cover: Brass, bronze or stainless steel tubing. Cross bars can easily be cut to length in the field. Trim is through-bolted. Non-handed. Dogging: Standard allen key dogging. Strike - 649 standard.
98 T PTB:
Pull is through-bolted to the next device through the chassis which allows for perfect alignment of the thumb piece and cylinder. Key outside unlocks/locks thumb piece. Rim cylinder supplied.
Match your need to the Sargent product listed. Our shop sales and service centre can help.
Sargent 3828 Series Rim-exit Device & Trim
Match your Sargent panic bar and exit trim as needed to replace or repair your current hardware.
3828 Series Rim Exit Devices & Trim:
Rugged exit device in a rim design. Chassis mounted unit construction assures easy installatin and maintenance. ANSI/BHMA Standard 156.3 Grade 1. UL Listed. UL Listed to Canadian safety standards. For doors: 1-3/4" thick standard, 4-1/2" minimum stile width required for single or double door applications using standard 649 strike. For doors: F-Rail 33" to 36". No cutting required for 36" doors. Mounting: furnished standard with wood and machine screws; available with through-bolts and mortise nuts. Tapered push rail and angled covers. Steel endcaps and covers. Chassis: Non-ferrous alloy. Rail assembly: Roll formed steel. Finish: sprayed aluminum enamel or polyester powder coated. Non-handed. Latchbolt: stainless steel 3/4" throw. Strike: 649 packed standard. Dogging feature: Allen-type key furnished standard (non fire rated devices only).
3828 Series Trims:
For doors 1-3/4" only.
28CLL:
UL listed to Canadian safety standards. Non-handed. Classroom function - key in lever locks or unlocks lever.
28LLL:
UL Listed to Canadian safety standards. Non-handed. Passage function - Latch bolt operated by lever; no cylinder.
28C OB:
Entrance function - Key in knob locks or unlocks knob.
28C TP:
Classroom function - key locks or unlocks thumbpiece.
28 K HTB:
UL Listed to Canadian safety standards. Through-bolted with 3 mortise nuts. Pulls project 1-1/2" from door face. Night Latch - Outside by pull and key
Multiple shop locations make finding and ordering parts easy. Our counter service locksmiths will help match your product needs.
Sargent 8700 Series Surface Vertical Rod Exit Device & 8888 Series Reversible Rim-exit Device
Grade 1 verticle rod surface mount panic bar & standard grade 1 panic bar
8700 Series Surface Vertical Rod Exit Device:
Two point latching - Top & bottom latchbolt projection adjustable through centre case. Standard bottom latch compatible with latch track thresholds (by others). Single and double door applications. Handing - Right hand reverse bevel. ANSI A156.3-2001 Grade 1; tested to over 16 million cycles. Rods are 1/2" brass, bronze or stainless steel. Door types - wood or metal 1-3/4" thick door, 4-1/2" minimum stile with trim and 3-1/2" minimum stile without trim. For doors: F-Rail 33" to 36". No cutting required for 36" doors.
Strikes - 646 top strike (panic and fire-rated), 624 bottom strike, 655 fire-rated bottom strike. Dogging feature Hex key dogging standard. Mounting fasteners; supplied standard wood and machine screws. Top and bottom bolt brass and stainless steel. Device centreline from finshed floor: 41"(1041mm) for standard applications: 38"(965mm) for elementary schools and to meet local accessibility standards when a 300 series auxiliary control is used. Centre case dimensions 8-3/8" x 2-5/8". Projection - pushbar neutral 3"; pushbar depressed 2-1/8". Door opening/height must be specified (102" max door opening). Stainless steel finish.
8888 Series Reversible Rim Exit Devices:
The perfect stocking device designed width stile applications on wood and metal doors. Non-handed. single and double door applications. ANSI A156.3-2008 Grade 1. UL Fire and Panic Listed. Door types - Wood or metal 1-3/4" and 2-1/4" thick door. For doors: F-Rail 33" to 36". No cutting required for 36" door. Mounting is supplied standard with wood and machine screws. Available on order with through bolts and mortise nuts. Chassis cover: cold drawn stainless steel, bronze or bronze. Stainless steel latchbolt, 3/4" throw. 649 strike standard (panic & fire rated). Stainless steel finish.
8888F:
Chassis - NonFerrous allowy (panic). Hex key dogging standard on non-fire rated devices.
12-8888F:
Chassis - Ferrous alloy (fire rated).
Verticle rod panic bars allow for easy exit while maintaining security. This verticle rod panic bar is an excellent choice for restaurants, back exit doors, schools, community halls, and anywhere else that there are large gatherings of people requiring emergency exit opportunities.

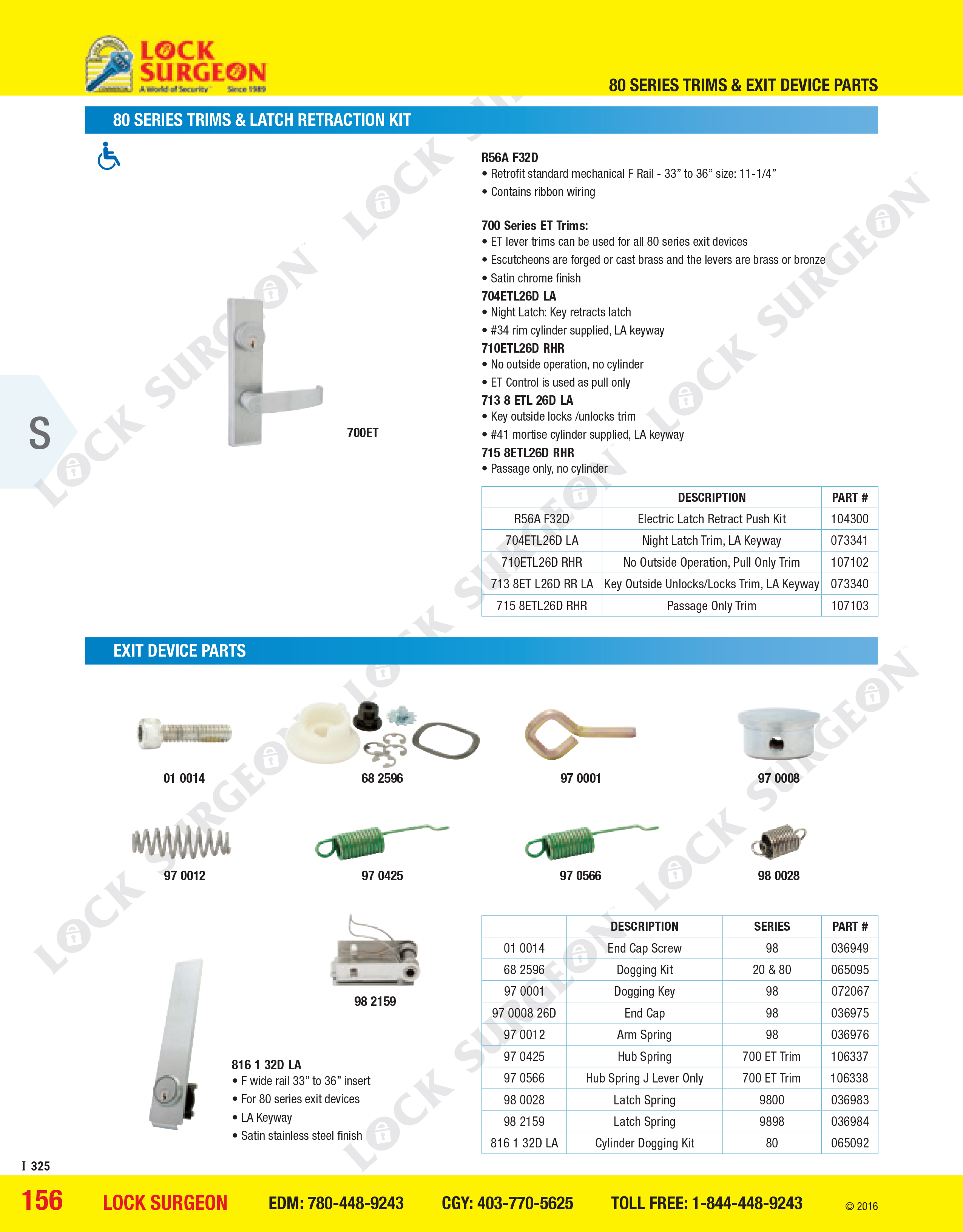

Sargent 80 Series Trim & Latch Retraction Kit & Exit Device Parts
Parts for minor repair of panic bar exit devices
80 Series Trims & Latch Retraction Kit:
R56A F32D - Retrofit standard mechanical F-Rail 33" to 36" size 11-1/4". Contains ribbon wiring.
700 Series ET Trims:
ET lever trims can be used for all 80 series exit devices. Escutcheons are forged or cast brass and the levers are brass or bronze. Satin chrome finish.
704ETL26D LA:
Night latch key retracts latch. #34 rim cylinder supplied, LA keyway.
710ETL26D RHR:
No outside operation, no cylinder. ET Control is used as pull only.
713 8 ETL 26D LA:
key outside locks/unlocks trim. #41 mortise cylinder supplied, LA keyway.
715 8ETL26D RHR:
Passage only. No cylinder.
816 1 32D LA:
F wide rail 33" to 36" insert. For 80 series exit devices. LA keyway. Satin stainless steel finish.
Repair and replacement parts for Sargent panic bar exit devices and trim may be ordered at our sales and service centre locations with the help of one of our Locksmith hardware experts.
Schlage ND Series Heavy Duty Commercial Lever Grade 1
Schlage commercial grade lever handle design names as follows: Athens, Rhodes, Sparta
ND Series Heavy Duty Levers:
Meets handicap accessibility codes. All ND series lever locksets are non-handed. Independent heavy duty spring cages for effective lever support. Through-bolted mechanism for positive interlock to door. Exceeds ANSI A156.2 Series 4000 Grade 1. Free-wheeling lever eliminates the ability to stand or exert excessive force on the end of the lever to resist vanalism. Backset 2-3/4"
Passage Latch:
Both levers always unlocked.
Bath/Bedroom Privacy Lock:
Push-button locking. It can be opened from outside with a small screwdriver. Turn inside lever or close door to release button.
Entrance/Office Lock:
Push-button locking. Push-button locks outside lever until it is unlocked with key or by turning inside lever.
Entrance Lock:
Classroom:
Outside lever locked and unlocked by key. Inside lever always unlocked.
Storeroom:
Outside lever is fixed. Entrance by key only. Inside lever always unlocked.
Electrically Unlocked (Fail Secure):
Schlage heavy duty, grade 1 commercial levers will fit door thickness of 1-5/8" to 2-1/8", have a 2-3/4" backset, come with a 6-pin everest keyway and are available in passage easy access easy exit handles, privacy lock for bathrooms and bedrooms, keyed entrance classroom allowing for passage or keyed entry and storeroom always locked door handle function.
Schlage D-Series Extra Heavy Duty Commercial Door Knobs Grade 1
Heavy duty grade 1 ball-knob by Schlage in the D-series
D Series Extra heavy Duty Knobs:
Heavy duty commercial and institutional applications. Concealed mounting screws. Keying KD standard, 6 pin cylinder keyed to 5. Door thickness 1-3/8" to 2". ANSI A156.2 Series 4000 Grade 1, UL Listed. Backset 2-3/4" standard. Latch 1/2" throw steel latch bolt with 1" housing. All stock in satin chrome finish and orbit design.
Passage Latch:
Both levers always unlocked.
Privacy:
Entrance:
Classroom:
Outside lever locked and unlocked by key. Inside lever always unlocked.
Storeroom:
Outside lever is fixed. Entrance by key only. Inside lever always unlocked.
Electrically Unlocked (Fail Secure):
Outside lever continuously locked unitl unlocked by key or electric current. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever always free for immediate exit.
This grade 1 Schlage D-series handle is typically used in high-use areas or high-value building environments such as law offices, schools, hospitals, office towers and high-use warehouse applications.
Schlage AL-Series Grade 2 Levers
Schlage Grade 2 lever handle available in Neptune, Jupiter and Saturn styles
AL Series Grade 2 Levers:
True through-bolting of door prevents lock shassis rotation and disengagement from latch. Stainless steel interlocking spindle design. Cold rolled steel, machined, threaded hubs and locking nuts prevent loosening of the lockset. Heavy duty cast mounting plate with specifically tapped holes reduces loosening of through-bolting and lockset on the door. Heavy duty compression springs extend life of spring cage. Large diameter of mounting plate and rose provides coverage for new ANSI hollow metal door cutout. Solid brass pin tumbler cylinder with nickel silver keys for less wear and longer cycle life. Door thickness - 1-3/8" to 1-7/8". Backset 2-3/4". Keying Stock in KD standard, 6 pin cylinder keyed to 5. Non-handed. ANSI A156.2-1989, Series 4000 G2. UL Listed for all functions up to 3hr doors. ADA compliant. All stock in satin chrome.
Passage Latch:
Both levers always unlocked.
Exit:
Blank plate outside. Inside lever always unlocked. Inside lever always free for immediate egress.
Privacy:
Entrance/Office:
Push-button locking. Push-button locks outside lever until unlocked with key or by rotating inside lever.
Entrance:
Classroom:
Outside lever locked and unlocked by key. Inside lever always unlocked.
Storeroom:
Outside lever is fixed. Entrance by key only. Inside lever always unlocked.
Lock Surgeon can provide you with new grade 2 Schlage lever handles more commonly used in businesses and buildings including apartments and warehouses. Available in: passage easy access without a key, exit-only handle one side, plate other side, privacy for washrooms and office applications, keyed entrance for doors on exterior or office, classroom with two-functions keyed lock or passage, storeroom always locked key required at all times.
Schlage Grade 2 A-Series Knobs
Schlage grade 2 knobs, latch parts and extension link
A Series Grade 2 Knobs:
Heavy duty residential medium duty commercial. ANSI A156.2 Series 4000 Grade 2, UL Listed. Keying KD Standard, 6 pin cylinder keyed to 5. Door thickness 1-3/8" to 1-7/8" standard. Backset 2-3/4", 2-3/8" available. Latch 1/2" throw deadlatch - 3/8" throw springlatch. Strike - T-strike 1-1/8" x 2-3/4". All stock in satin chrome.
Passage:
Both levers always unlocked.
Privacy:
Push-button locking. Can be opened from outside with small screwdriver. Turning inside knob or closing door releases button. Inside knob is always free for immediate egress.
Entrance:
Turn/push-button locking - Pushing and turning the button locks the outside lever requiring use of a key until the button is manually unlocked. Push-button locking - pushing button locks outside lever until unlocked by key or by turning the insde lever.
Classroom:
Outside lever locked and unlocked by key. Inside lever always unlocked.
Storeroom:
Outside lever is fixed. Entrance by key only. Inside lever always unlocked.
A Series Latches & Extension Link:
41 005: Extension link when used with a 2-3/8" latch (not included) creates a 5" backset latch.
Visit Lock Surgeon's parts and service centre to find the latch parts you need to repair your commercial door handle.

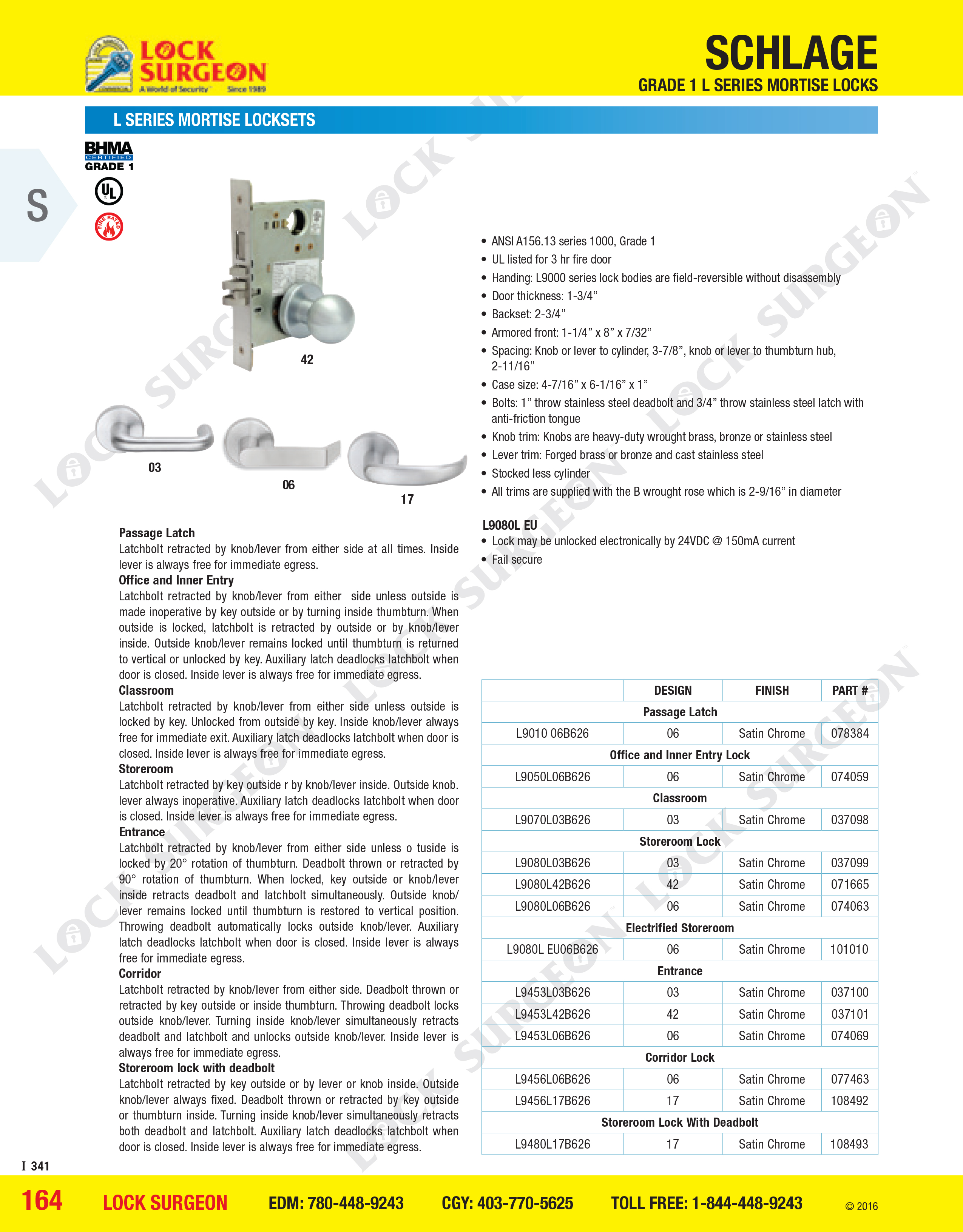

Schlage L-Series Mortise Lock
L-Series mortise locks available with three different lever styles, lever 03, lever 06, lever 17
L Series Mortise Lockset:
ANSI A156.13 Series 1000 Grade 1. UL listed for 3hr fire door. Handing - L9000 series lock bodies are field-reversible without disassembly. Door thickness 1-3/4". Backset 2-3/4". Armored front 1-1/4" x 8" x 7/32". Spacing - Knob or lever to cylinder 3-7/8", knob or lever to thumbturn hub 2-11/16". Case size - 4-7/16" x 6-1/16" x 1". Bolts 1" throw stainless steel deadbolt and 3/4" throw stainless steel latch with anti-friction tongue. Knob trim forged brass or bronze and cast stainless steel. Stocked less cylinder. All trims are supplied with the B-wrought rose which is 2-9/16" in diameter.
L9080L EU:
Lock may be unlocked electronically by 24VDC at 150mA current. Fail Secure.
Passage latch:
Latchbolt retracted by knob/lever from either side at all times. Inside lever is always free for immediate egress.
Office and Inner Entry:
Latchbolt retracted by knob/lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn. When outside is locked, latchbolt is retracted by outside or by knob/lever inside. Outside knob/lever remains locked until thumbturn is returned to vertical or unlocked by key. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress.
Classroom:
Latchbolt retracted by knob/lever from either side unless outside is locked by key. Unlocked from outside key. Inside knob/lever always free for immediate exit. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress.
Storeroom:
Latchbolt retracted by key outside or by knob/lever inside. Outside knob lever always inoperative. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress.
Entrance:
Latchbolt retracted by knob/lever from either side unless outside is locked by 20º rotation of thumbturn. Deadbolt thrown or retracted by 90º rotation of thumbturn. When locked key outside or knob/lever inside retracts deadbolt and latchbolt simultaneously. Outside knob/lever remains locked until thumbturn is restored to vertical position. Throwing deadbolt automatically locks outside knob/lever. Auxiliary latch deadlocks latchbolt when door is closed. Inside levrer is always free for immediate egress.
Corridor:
Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted by key outside or inside thumbturn. Throwing deadbolt locks outside knob/lever. Turning inside knob/lever simultaneously retracts deadbolt and latchbolt and unlocks outside knob/ever. Inside lever is always free for immediate egrees.
Storeroom Lock With Deadbolt:
Latchbolt retracted by key outside or by lever or knob inside. Outside knob/lever always fixed. Deadbolt thrown or retracted by key outside or thumbturn inside. Turning inside knob/lever simultaneously retracts both deadbolt and latchbolt. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress.
Schlage mortise lock-sets with handles to match your current location decorator styles in functions that match your door requirements such as: passage, office, classroom, storeroom, electrified-storeroom, corridor and storeroom lock with deadbolt.
Schlage B250 Series Grade 1 Single-cylinder Deadlatch & 500 Series Grade 2 Single and Double Deadbolts
Schlage grade 1 commercial deadlatch bolt and grade 2 commercial deadbolts
B250 Series Single Cylinder Deadlatches:
Fits doors 1-3/8" to 1-3/4" thick. Deadlocking latch bolt prevents "shimming" of the latch. "Holdback" feature retains the deadlatch in a retracted position when desired. Stocked 2-3/4" backset with "C" keyway. Keying KD standard 6 pin cylinder keyed to 5. ANSI A156.5 Grade 1.
B500 Series Single & Double Deadbolts:
Adapter rings: Trim ring with anti-pry shield standard, 2-1/2" outer diameter. Removable to fit 1-1/2" door preps. Exposed trim - wrought brass or bronze, reinforced with steel security insert. Deadbolt 1" x 2-1/4", square corner faceplate, 1" housing diameter, 1" throw. Strike 1-1/8" x 2-3/4", square corner, box. Backset adjustable for 2-3/8" or 2-3/4". Keying KD standard, 6 pin cylinder keyed to 5. Door thickness 1-3/8" - 1-3/4". Reinforcement - Metal dust box reinforcer with three 3" screws. Certification ANSI A156.5-2001, Grade 2.
B571 626:
Door bolt occupancy indicator used on washrooms.
Schlage quality locking deadlatch and B500 series single and double deadbolts with convenient features provide unique door locking opportunities. Interior lock with in-use indicator for washrooms, single-sided T-turn deadbolt with no exterior visible lock or single-sided T-turn with blank-face exterior. Lock Surgeon's store locksmith can provide you with the deadbolt that you need to secure your door.
Schlage B660-series Grade 1 Deadbolt & B-series Thimble Strike, Bolts & Tailpieces
B660 Grade 1 commercial deadbolt and latch and bolt parts
B660 Series rade 1 Commercial Deadbolts:
1" throw high-strength steel alloy deadbolt with hardened steel roller resists sawing and kick-in attacks. Wood frame reinforcer protects wood jamb against kick-in attacks. Reinforcer is concealed under strike and is anchored to jamb by two 3" screws. Free-spinning solid cylinder collar resists wrenching and prying. Large inside thumbturn makes it easy to throw and retract deadbolt. Keying KD standard 6 pin cylinder keyed to 5. Metal shield protects bolt from ice-pick attack through door. Hardened steel balls protect mounting bolts from drill attack. Backset 2-3/4".
Classroom:
Deadbolt thrown only by key outside; retracted by key outside or thumbturn inside.
B Series Thimble Strike Bolts & Tailpieces
B660 grade 1 commercial deadbolt is the warehouse standard Lock Surgeon's parts and service centre recommends on a daily basis and is typical of what contractors have installed on commercial warehouse doors. Lock Surgeon's Lock Smiths can help direct you to the right replacement commercial deadbolt needed to secure your warehouse, apartment or business door.
Kaba-Unican 1000-series Knob Push-button Locks
Commercial push-button ball knob lock for a variety of applications
1000 Series Knob Push-button Locks:
Ideal for limiting access in high-traffic areas. Heavy duty cylindrical lock housing conforms to DOD 5220.22M. Door thickness 1-3/8" to 2-1/4". Non-handed Field reversible. Minimum stile required for mounting 5". Dimensions - front housing 7-3/8"L x 3-1/8"W x 3-13/16"D. Latch/Backset: UL/ULC 3hr rated 1/2" throw latch bolt with 2-3/4" backset and floating faceplate. Key override models accept removable core cylinders. Removable core cylinders not supplied with lock. Stock in satin chrome.
1011:
Exterior access by combination. Egress by interior knob.
EE1011/E1011:
Combination entry both sides.
1021:
Exterior access by combination or key override. Egress by interior knob. Cores not included, stock in satin chrome.
1031:
Exterior access by combination or passage feature. Interior has passage feature - thumbturn & key. Egress by interior knob.
1041:
Exterior access by key combination, key override or passage feature. Interior has passage feature - thumbturn & key. Egress by interior knob. Cores not included.
Key Override:
Allows a facility to maintain or initiate a keyed-alike security system with the same key system already in use. The key is normally only iin the hands of security or management personnel and will override the lock's combination to gain entry.
Passage Feature:
Allows access without using the entry code (keeps the door unlocked even while closed). this function is on the inside of the door, and can be activated by either a thumbturn or a key (Thumbturn and key included with all passage feature models).
1000 series mechanical knob push-button locks are available with a variety of functions including standard push-button entry, combination both-side push-button entry, keyed overide function or a switch to passage function. Lock Surgeon's shop parts service locksmith can consult with you to determine the correct push-button combination lock that will best work on your warehouse, business, lunchroom or shop.
Kaba-Unican L-1000 Series Lever Push-button Locks
L1000 Series Lever Push-button Locks:
Designed for high frequency use, wherever limited access is required. Single access code, one easy-to-manage code for all users. Easily programmed via keypad. Door thickness 1-3/8" to 2-1/4". Weather resistant. Vandal resistant, solid metal push-buttons. Backset 2-3/4". 1/2" throw latch. 3hr UL/ULC fire rating on "A" labeled doors. Minimum stile 5". Removable core cylinders not supplied with lock.
L1001:
Exterior access by combination. Egress by interior lever.
L1021:
Exterior access by combination or key override. Egress by interior lever.
L1031:
Exterior access by combination or passage. Interior access without using the lock entry code: Activated from the inside with a thumbturn or key. Egress by interior lever.
Passage Set Option:
The key cylinder (A), shown is the standard control for changing combinations on the Kaba Simplex series 1000 & L1000. the optional passage set (B), shown below the key cylinder in the image above, allows the lock to be opened without using the push-button combination. This is valuable when a door is to be left unlocked for extended periods. The optional passage set comes ordered with a thumbturn activator, as shown, or with a key cylinder activator.
Lever handles are preferred to allow for handicap access and/or easy access when hands are full of other materials. Available in combination code entry, combination code entry with passage, combination code entry with key-overide. Lock Surgeon's lockSmith handle hardware experts can provide the push-button lever handle and installation instructions for your steel door.
Dormakaba kaba LP1000-series Exit Device Control Lever Push-button Lock To Work With Panic Bar
Specially designed to work with panic bars and push-pad exit devices
LP1000 Series Exit Device Control Lever Push-button Locks:
Replaces key cylinder on new or existing surface mounted exit devices. Single access code, one easy-to-manage code for all users. Operation modes - push-button access, and exit device may be "dogged" without affecting the LP1000. Easily programmed via the keypad. Vandal resistant, solid metal push-buttons. Exit device hub rotation up to 60º, counterclockwise for left hand and clockwise for right hand. Tailpiece 2-3/4" tailpiece for exit device operation from outside. Minimum stile 5".
Door thickness 1-3/8" to 2-1/4". Weather resistant. 3hr UL/ULC fire rating for "A" labeled doors. Finish satin chrome. Compatible with most leading brands of rim exit devices (exit device not included): Black & Decker(k-12) QED111/112, Cal Royal 5000/F5000, Detex Advantex Series 10 20 21 40 50 or 51, Detex 10/F10 series, Dorex 8500R/8500F, Dorex 9100 or 9300, Monarch XXR FXXR or 18R, F18R 17R F17R XXV FXXV 18V F18V FXXV 11R 11V*, Von duprin 22 88NL 98 99 900 2227 9827 9847 9847WDC 9848 9857 9927 9947 9947WDC 9948 9957 90027 90047WDC 90057. *(requires special K-Hub Adapter Kit).
2015 Series Exit Device Control Lever Push-button Lock:
Single access code, easily programmed via keypad. 6 pin tumbler cylinder keys for combination change access. Minimum stile 3-1/8". Non-handed. 2-3/4" adjustable tailpiece for exit device operation from outside. Exit device hub rotation: Adjustable up to 90º clockwise for right hand. Weather resistant.
Compatible with most leading brands of rim exit device (exit not included): American Device 6300 6303 series, Corbin Russwin 21 22 25 26NT 27K 29 29-1/4 29M2 29-1/2M2 29NTM2 29D20 LA29 39 39EL 39LLD 390 LA39 365 3651/4 LT365 370 372 LA372 375 LT375 377 382 384 385 388 572 572EL 572ELD U572 LA572, Detex Advantex series 10 20 21 40 50 51, Dorex 8500R/8500F, Dorex 9500R/9500FR, Magno Krom LHR only 500-4 550-4 650-4 1500-4 1550-4 1650-4 RHR only 600-3, Monarch 18RBA 18RP 18VP F18RBA F18RP F18VP FXXRBA FXXRP FXXVP XXRBA XXRP XXVP, Precision Hardware FL-D103 RHRB only 810-H RH or LH 103 R103 D203 H-203 1103 D1203 H1203, Sargent 2813 2804 6804 12-6804 9804RHRB 12-9804LHRB 9898E 9898K, Von Duprin 22 Rim, 22 Rim-F 88 Rim 88 Rim-F 98 Rim 98 Rim-F 99 Rim 99 Rim-F 2227 2227-F 9827 9827-F 9847 9847-F 9927-F 9947-F, Yale 1500, 7000 series.
This digital entry system will work with the following panic bar brands: Black and Decker, Cal Royal, Detex, Dorex, Dorma, Monarch and Von Duprin. Ask Lock Surgeon's in-shop service technicians to pair the appropriate panic bar to this push-button entry system.
Dormakaba Kaba 3000 Series Narrow Stile Push-button Locks & 3000 Series Extra Heavy Duty Push-button Locks
Narrow stile push-button lock for glass-aluminum door
3000 Series Narrow Stile Push-button Locks:
Provides exterior access by combination entry, key override, passage and lockout. Works with Adams Rite 4510/4710/4910 mortise latch. Single access code. Easily programmed via keypad. Non-handed, field reversible. Accepts Maximum Security (MS) mortise cylinders. Vandal resistant, solid metal push-buttons. Minimum stile width 1-7/8". Door thickness 1-3/4". Cylinder not included. Drive assembly required.
5000 Series Extra Heavy Duty Push-button Locks:
Ideal for controlling access to high traffic, security sensitive areas in commercial, industrial, educational, governmental, lodging and multi unit residential setting. Perfect for locations with a high user turnover rate such as data processing centres, employee entrances R&D labs, apartments, dormitories and restricted areas in hospitals and airports.
Single access code, one easy-to-manage code for all users. key override. Easily programmed via keypad. ANSI/BHMA A156.2 Grade 1 certified. Weather resistant, indoor/outdoor approved. 3hr UL/ULC fire rating for "A" label doors. Vandal resistant, metal push-buttons. Non-handed. Door thickness 1-3/8" to 2-1/4". Minimum stile 5". Backset 2-3/4". 1/2" throw latch, floating faceplate. Tailpieces for compatibility with: Abloy 5277, Abloy 5477, Arrow C100, ASSA 65611, ASSA 65691, Corbin Russwin 2000-03, Kaba 1539, Kaba 1599, Kaba Gemini 4730, Kaba Peaks 1099, Marks, Medeco 20W200H1, Sargent 10 line, Schlage 23-001, Shlage Primus 20-760.
Narrow stile push-button lock designed to work on storefront doors that restrict access such as, accounting office, sales office, doctors office. Installation consultation of this push-button lock can be provided by Locksmiths that work for Lock Surgeon.
Kaba Push-button Combination Lock Parts
Parts for worn or broken push-button locks
Service Repair Kits & Spy Shield:
These repair kits have almost everything you need to completely repair a Unican mechanical lockset in the field, including chamber, springs, and other parts.
Lock Surgeon's shop service technicians can repair your lock at one of our locksmith parts centres or consult with our in-store locksmiths about the part or replacement options.
Kaba Push-button Deadlatch Deadbolt & Spring Parts
Replacement parts for commercial Kaba push-button digital entry
Push-button Service Parts
Deadlatches, deadbolts, springs, tail-pieces and service parts for Kaba push-button digital entry.
Von Duprin 22-series Exit-device & Trim
Panic bar push-pad style by Von Duprin and trims to match your lock and door needs
22 Series Exit Device:
22 rim exit device for all types of single and double doors with mullion. UL listed for panic exit hardware. Rim cylinder (not supplied) retracts latch. Rated devices are ANSI A156.3-2001 Grade 1. Covers stock hollow metal doors with 161 cutouts. Device ships ready for all functions; EO, DT, NL, TP, K, L. Non-handed. Device lengths -3'. Supplied with 299 dull black strike. Dogging feature: Hex key dogging standard (non-fire rated). Deadlocking latch bolt 3/4" throw (22EO & 22EO-F).
22EO:
Minimum door opening 1/2" stop: 26-1/2". Minimum door stile width: 3-13/16".
22EO-F:
Minimum door opening 1/2" stop:26-1/2". Minimum door stile width: 4-3/8". Fire rated.
2227EO:
Minimum door opening 1/2" stop: 25-7/8". Minimum door stile width: 4-3/8". Door height: 7'.
22 Series Trims:
210K28: Escutcheon plate size 3" x 4-25/32" x 3/32". Includes cylinder.
230L SP28:
Escutcheon plate size 3" x 6-3/8" x 15/16". Cylinder not included.
230TP/230NL SP28/230TP BE SP28:
Pull centre 5-1/2". Escutcheon plate size 3" x 12-1/16" x 3/32". Cylinder not included.
Von Duprin standard panic bar, fire-rated panic bar and verticle rod panic bars with the push-pad style are the go to for our Lock Surgeon hardware parts service centre team. Door trims also known as exterior handle combinations are available in a number of style functions: ball knob, lever, thumb-press, thumb-press with lock or night latch.
Von Duprin 44 & 88 Series Exit Device & Accessories
Von Duprin 44 and 88 panic bar and accessories
44 Series Exit Devices:
44EO: Non-handed economical exit device is supplied with single door 299 strike. Device will fit 1-3/4" thick doors and is field sizeable from 2'6" to 4' wide doors. Rim cylinder (not supplied) retracts latch. Sprayed aluminum finish. Supplied with 299 dull black strike. Dogging feature: Hex key dogging standard. Deadlocking latch bolt 3/4" throw. cUL listed 266M panic hardware.
44TP:
Like 44EO bar but supplied with gripset that is operated by rim cylinder, which locks or unlocks the 2 part thumbpiece. Size of handle is 2" x 9-5/8".
Note: No replacement parts are available for the 44 series exit devices.
88 Series Exit Devices & Accessories:
Conforms to ANSI A156.3-1989 Grade 1. For all types of single and double doors, UL listed for accident hazard installations. Covers stock hollow metal doors with 86 or 161 cutouts. Standard cross bar length: 42", fits doors up to 48" (field sizeable). Door thickness 1-3/4". Non-handed. Hex key dogging. Finish - Satin chrome with stainless steel cross bar.
88EO:
Heavy duty rim mounted exit device. 3/4" throw latch bolt. Accepts rim cylinder for retraction of latch (not supplied).
88TP:
Same as 88EO with thumbpiece that can be locked an unlocked by use of rim cylinder (not supplied).
8827:
5/8" throw latch bolt. Fits door stiles as narrow as 3-1/2".
880TP:
Requires rim cylinder for operation (not supplied). Escutcheon size 3" x 14-3/16" x 3/32".
050101/050102:
Converts any standard 88 series rim exit device.
The Von Duprin 44 exit device is an older-style unit, not often used today. The 88 series exit device also found in older situations available with verticle rod, night-latch or keyed-thumb-piece trim, standard bar style or surface mount verticle rod.
Von Duprin 98 & 99 Series Exit Device & Trim
Grade 1 Panic bar, Von Duprin 98 and 99 series exit device and trim are made to last
98/99 Series Exit Devices:
Devices are equipped with a fluid dampener which decelerates the pushpad on its return stroke and eliminates most noise associated with exit device operations. Rim devices are equipped with a deadlocking latchbolt. ANSI A156.3-2001 Grade 1 UL listed. Non-handed. Dogging feature: Hex key dogging standard (non fire rated). Devices are 3' long can be field sized for doors from 2'4" to 3' wide. Rim mount devices supplied with 299 surface strike. Supplied with mounting hardware for 1-3/4" to 2-1/4" thick doors. Vertical devices are for 7' high doors with 5/8" deadlocking latches. Centre case dimensions 8" x 2-3/4" x 2-3/8".
98/99 Series Exit Device Trims:
Cylinder not included, pull centre 5-1/2", all stocked in satin chrome 990DT 26D/990NL RV26D.
990TP BE/990TP R26D/992L R/V 06 LHR 626/996L06 626
Escutcheon plate size 2-3/4" x 10-3/4" x 27/32".
996L - 996L Breakaway trim
Effective in areas where vandalism to door hardware is a problem, non-handed.
Heavy duty grade 1 panic bar used in governement buildings, apartments, law offices, and anywhere heavy use and quality panic bars are required. Available in fire-rated series with trims such as dummy-trim, night-latch, thumb-piece or lever handle.
Von Duprin Narrow Stile Exit Devices, Electronic Latch Retraction Kits & Accessories
Narrow Stile Exit Devices, ELR Kits & Accessories
33A & 35A Series Narrow Stile Exit Device:
Devices are equipped with a fluid dampener which decelerates the pushpad on its return stroke and eliminates most noise associated with exit device operations. Equipped with a deadlocking latchbolt to provide additional security and improved performance. For all types fo single and double doors with mullion. Non-handed for left and right handed doors. Dogging fixture hex key dogging standard. Fits door stiles as narrow as 1-3/4". Devices are 3' long, can be field sized for doors from 2'4" to 3' wide. Rim mount devices supplied with 1439 roller strike. Supplied case dimensions: 8-3/16" x 2-13/32" x 1-9/16". ANSI A156.3-1994 Grade 1 UL Listed.
Electric Latch Retraction Kits & Accessories:
050070 - Electric latch retraction (ELR) conversion kit for 33, 35, 98, & 98 series 3' exit devices. Requires PS914 & 900 2RS power supply to function.
050251 00
Field installable request to exit (RX) switch signals access control systems when pushpad is depressed. For 22, 33, 35, 98 & 99 devices.
EPT10
Electric power transfer conducts current from the frame to the edge of a swinging door. Fully concealed when door is closed. Ten 24 gauge wires up to 1amp at 24VDC with a 16amp maximum surge.
PS914
size 14"H x 12"W x 4"D. Output 4A at 12/24 VDC output, field selectable with jumper. Universal 120-240 VAC input. Designed with high in rush current for powering electrified panic devices. Low voltage DC, regulated and filtered. UL listed 294.
900 2RS
2 relay EL panic device control board for use with the PS914 power supply. Recommended for use with 914 when powering an EL device. Required for use with 914 when powering 2 EL devices.
Von Duprin Panic Bar Exit Device Parts & Accessories
Parts and accessories for Von Duprin Panic Bar
98/99 Series Accessories:
Retrofit alarm kit for 99 devices to deter unauthorized use of an opening. ALK kit contains an 85 decibel internal horn: when the touch bar is depressed the horn sounds to signal that the opening has been violated. Alarm kit can be armed or disarmed by key. Uses a standard 1-1/4" mortise cylinder with a straight cam (not supplied). Operates on one standard 9 volt alkaline battery. Furnished with an RX-request to exit switch. Includes "EMERGENCY EXIT ONLY, ALARM WILL SOUND" decal. It is recommended to use the non stock ALK-LX kit when used in conjunction with surface mount vertical exit devices.
050115:
Retrofit kit for cylinder dogging on 98/99 devices (except fire rate) to replace the standard hex key dogging unit. Requires a 1-1/4" mortise cylinder with straight cam (not supplied).
Talk to Lock Surgeon's lock smith service counter staff about what your needs are for parts to repair this popular brand of product.
Flush Bolt, Surface Bolts & Roller Latch
Flush Bolt, Surface Bolts & Roller Latches
Constant Latching Flush Bolt
Constant latching - inactive door remains latched until the active door is opened, releasing the automatic bottom bolt and then the top bolt can be manually released. Inactive door will relatch automatically when closed. Low actuation forces. Fits standard ANSI A115.4 door and frame preparations. Non-handed. 3/4" bolt throw with a 7/8" vertical adjustment. 3/4" backset. Standard rod length is 12", which is measured from the centre of the flush bolt body to the bolt tip. Body size - 1"W x 6-3/4"L x 2"D. Meets ANSI A156.3 type 27. UL Listed 3hr fire doors 8'0" x 10'0".
Surface Bolts
Standard surface bolt has 1" throw for maximum security. Ideal for all types of doors. Fully concealed mounting prevents vandalism. Available in locking version: Unit locks both the up and down position - locking bolts are furnished with 2 keys in 4 keying variations. Units packed with wood and machine screws to meet most field conditions. Units available with either a universal top strike (T) or a flat bottom strike (B) in height. Meets ANSI/BHMA A156.16, L84161. Sex bolts available where required.
Roller Latch
Actuation is simple, closing of the door causes the roller to fall in the depression of the strike, thereby holding the door closed. The projection of the roller is easily adjusted using adjusting screws on the face of the unit. Maximum projection of the roller is 3/8" allowing for variance in the door clearance. Nylon roller standard. Forged brass construction. Meets ANSI/BHMA A156.16, E19091.
MLF Series Mortise Locks
Grade 1 MLF Series Mortise Locks
MLF Series Mortise Locks
LSDA moritse locks provide exceptional strength and durability to any door. Typically used in hospitals, schools and commercial buildings. They are well-suited to heavy use environments. Designed to fit standard Type 86 full-moritse cutouts, and equipped with an escutcheon trim, these locks are excellent for new projects and retrofits. The lever trim meets ADA standards for accessibility. Several functions are available, some with integral deadbolt. Mortise locks offer functions that cannot be obtained using cylindrical "key-in-knob" locksets. ANSI/BHMA A156.13-2005 Series 1000, Grade 1 heavy duty.
UL10C; UBC 7-2-1997. Heavy-duty full-case mortise lock. Oversize escutcheons, ideal for retrofit. Individual lever return springs prevent sagging. UL Listed for 3hr fire doors. Supplied with SC4 1-1/4" mortise cylinder. Cylinders used for this mortise lock must be 1-1/4" length mortise cylinder. Deadbolt - 1" bolt projection. Latch - 3/4" projection. Supplied with a mortise cylinder except passage and privacy functions locks. Door thickness 1-3/4". Door preparation full mortise, see template. Escutcheons 2-1/2"W x 8-1/4"H. "Quick Change" handing is field reversible. Strike 4-7/8" x 1-1/4". Backset 2-3/4". Construction: forged brass levers and escutcheons, zinc chromate steel case, brass latchbolts. Style is Ann Arbor. Finish in Satin Chrome.
MLF01 - Passage:
Latch retracted by lever on either side.
MLF04 - Entrance:
Lock or unlock ooutside lever using rocker on edge of lock. When locked, inside lever retracts latch, outside access by key.
MLF05 - Classroom:
Lock or unlock outside lever by key on outside of the door. When locked, inside lever retracts latch.
MLF07 - Storeroom:
Inside lever always retracts latch. Outside lever never retracts latch, outside key retracts latch.
MLF12 - Apartment/Dormitory/Exit With Rocker:
Latch is retracted by either lever unless outside lever is locked by rocker. In addition , a deadbolt can be projected or retracted by key outside or thumbturn inside. Also, operating inside lever retracts both latch and deadbolt, while outside lever remains locked.
MLF13 - Apartment/Dormitory/Exit Without Rocker:
Both levers always retract latch. Deadbolt can be projected and retracted by key outside or thumbturn inside. Also, operating inside lever retracts both latch and deadbolt.
MLF19 - Privacy:
Both levers always retract latch. Deadbolt can be projected and retracted by thumbturn inside or emergency release outside. Also, operating inside lever retracts latch and deadbolt.
MLF48 - Storeroom with Deadbolt:
Inside lever always retracts and deadbolt if it is extended. Outside lever is rigid, outside cylinder retracts latch, and deadbolt if it is extended. Deadbolt is extended or retracted by inside thumbturn or by outside cylinder.
This mortise lever cassette is available in: Passage, entrance, classroom, storeroom, apartment dormitory exit lock with rocker, apartment dormitory exit lock with no rocker, privacy and storeroom with deadbolt.
Universal Combination Cylinders & Neuter Bow Key Blanks
Universal Combination Cylinders & Neuter Bow Key Blanks
Universal Combination Cylinders:
Meets ANSI/BHMA A156.5 Series Grade 1. Operates most Grade 1 & 2 locksets and leversets including Arrow D, E, F, K Schlage B100, B400 and H Series deadlocks as well as many other locksets such as LSDA. One piece OEM quality tailpieces. Drilled 6, pinned 5 standard. Rekeyable to original manufacturer's system. Manufactured from solid brass. Screw cap fastening of the plug facilitates ease of keying. All stocked with 26D (Satin Chrome) plug faces. Composite (comp) works with Schlage C-K & 1170C (Hollymade).
Neuter Bow Key Blanks:
Large head lacquered brass blanks. Embossed face with LSDA and "Do Not Duplicate". Meets original manufacturer tolerances.
Concealed Circuit Single Acting Spring & Full Mortise Interim Hinges
Concealed Circuit, Single Acting Spring & Full Mortise Interim hinges
Concealed Circuit Electric Hinge:
An intermediate connector which passes a constant flow of current between the source of power(jamb) and the actuated devices in the door. 28 gauge multi-strand wire with 12" long leeds. Available with 2 or 4 circuits. 1 Amp, 24 volts maximum each circuit continuous duty, 16.0 amps intermittent duty (pulse) for 300 milliseconds. Electric feature undetectable when hinge is installed.
Full Mortise Single Acting Standard Weight Spring Hinge:
Non-handed hinge series has infinite adjustments with the tension being added or reduced by means of provided hex key. Locking screw provides tamper-resistance after the proper tension has been set. Nylon tee bearings for vertical and lateral loads. Coil spring provides closing power. Steel base material polished and plated.
Full Mortise Interim Hinge:
For a new or retrofit installation. An equal amount is trimmed from the top and bottom of the leaf. Interim hinges are supplied with a no hole bottom plug and the pin is held in place by an NRP set screw which allows the hinge to be reversible. Steel base material.
Hinges are available in a variety of sizes and functions to work with your commercial warehouse door or storefront door. Lock Surgeon's hardware parts ad service centres stocks a variety of products to meet your door hinge needs.
Half Surface Plain Bearing & Full Mortise Bearing Hinges
Half Surface Plain Bearing & Full Mortise Bearing Hinges
Five Knuckle Standard Weight Series Half Surface Plain Bearing Hinge:
Recommend for use on minimum frequency and/or light weight wood or stock hollow metal doors in residences, apartments or other very low frequency doors in commercial construction. Surface mounted on door, mortised frame. Steel base material polished and plated.
Five Knuckle Standard Weight Series full Mortise Steel Bearing Hinge:
Bearing hinge. Steel based polished and plated. Recommended for standard weight doors or doors with closing devices. NRP: Non-removable pin prevents removal of hinge pin when door is closed.
Five Knuckle Standard Weight Series Full Mortise Bearing Hinge:
Recommended for standard weight, medium frequency doors, or doors with closing devices. Steel base polished and plated. NRP: Non-removable pin prevents removal of hinge pin when door is closed.
Five Knuckle Heavy Weight Series Full Mortise Bearing Hinge:
Stainless steel base polished and brushed chrome plated. Recommended for use on high frequency and/or heavy wood or metal doors in schools, hospitals or other public buildings where heavy traffic is experienced. NRP: Non-removable pin prevents removal of pin when door is closed.
Astragals Brush Sweeps & Gasketing
T-Astragal is ideal for steel commercial double-door weatherstrip
Astragals:
Astragals and meeting stiles on double doors often present problems because of complex conditions and requirements. Punched with slotted holes for adjustment. All stocked clear anodized, 84" long with brush products being supplied with gray brush.
18061 & 357:
Fire rated.
18061:
BMHA certified
Brush Sweep Gasketing:
All UV stabilized brush seals consist of densely compressed nylon filaments encased in high quality aluminum retainers. Suitable for hollow metal and wood door applications. All brush seals greatly reduce the infiltration of light, air, wind, rain and snow while preventing loss as well as controlling the penetration of smoke and fumes. Supplied with #6 x 5/8" stainless steel sheet metal screws. The dense nylon filaments conform to the contours of every sealing surface, providing a superior seal with extremely low closing force. Brush remains flexible down to -40ºC and has a melting point above +205ºC. Punched with slotted holes for adjustment. Stocked in clear anodized or dark anodized with black brush.
Perimeter Gasketing
Rigid jamb weatherstrip shown mounted on openings with 1/16" gaps; however stocked weatherstrip can seal gaps up to the 1/4", the depth of the seal material. Punched on 6" centres with lotted holes for adjustment. Stainless steel fasteners are standard. Fire-rated. 312: BHMA certified.
Brush-sweep works for glass-aluminium doors, perimeter gasket kit designed for standard commercial steel doors. Weatherstrip can be purchased at one of Lock Surgeon's weatherstrip sales and service centres.
Automatic Door Bottom Seal, Door Sweeps, Adhesive Smoke-Fire Gasket, Door Louvres
Door Bottoms, Perimeter Gasketing & Louvers
Door Bottoms:
Automatic door bottoms consist of aluminum case which surrounds the movable drop-bar seal. The patented plunger mechanism engages on the hinge side first to actuate the dro-bar seal; this feature prevents the seal from skidding along the floor/threshold while the door is being closed. Sponge neoprene seals up to 3/4" gap under the door. Can be trimmed by up to 2". Fire-rated. 315 & 4131: BHMA certifed.
Adhesive Smoke/Fire Gasketing:
Excellent resistance to compression set, particularly at elevated temperatures and for extended periods of time. Stays felxible between -40ºC and 121ºC with very high resistance to flex fatigue. Seal begins compressing at 3/16" and compresses to seal up to a 1/16" gap. Outstanding ozone resistance rating. Smoke tested in accordance with UL1784-01; meets the requirements of NFPA 105 - Standard for the installation of smoke door assemblies and other opening protectives. Designed for tighter frames with extremely low closing force. Stocked as a 20' coiled length.
Door Louvres:
Construction 18 GA. Steel frame with 22 GA. Steel louver blades primed grey. For 1-3/4" thick interior doors. By supplying 50% air flow these louvres are ideal for air exchange.
Not all weatherstrip is the same, call and talk to one of Lock Surgeon's shop counter lock smith staff to discuss your commercial weatherstrip needs.
Storefront Frame Repair Kit, Deadbolt Guard & Frame Repair Plate
Storefront Frame Repair Kit, Deadbolt Guard & Frame Repair Plate
Storefront Frame Repair Kit:
Finish - Durable powder coat. Affixed with 3/16" pop rivets (supplied). Size 6"H x 1-3/4"W with 1" mounting flange.
Deadbolt Guards:
For outswing doors. Protects against vise grips, hammers & punches & crowbars. Lip overlap protects door frame. Completely covers many tubular deadbolts.
Frame Repair Plate:
Spanning 7' this frame reinforcer repairs damaged frames as well as provides additional security for intact frames. Molding on inside of frame must be removed to install product correctly.
4-Series commercial Duty Centreline Electric Strikes & 4-Series Faceplates
4 Series Electric Strikes
4 Series Commercial Duty Centreline Electric Strikes:
Body only, faceplates sold separately. ANSI-size faceplate: 1-1/4" x 4-7/8". Accommodates 3/4" latch projection (pullman design not included). Enlarged latch cavity width allows compatibility with cylindrical and centreline mortise locks (including 3-piece anti-friction type) and mortise exit devices. 1-1/2" cut-out depth accommodates most aluminum and hollow metal frames. Use with wide range of door thicknesses: 1-3/8" to 2-3/8". AC/DC input acceptable for all fail secure models. Fully reversible for right or left-hand doors. Standard mounting tabs and fasteners included. Unique anti-vibration design prevents manipulation by vibration. Finish: stainless steel. UL 1034 burglary resistant - highest level 1000 lbs of static strength. Meets ANSI/BHMA A156.31 Grade 1. Non-handed.
4 Series Faceplates:
B4714 - For 4114:
Use with centreline exit devices, cylindrical or centreline mortise locks. 1-1/4" x 4-7/8".
B4704 - For 4104:
Use with aluminum, cylindrical or centreline moritse locks and centreline exit devices. 1-1/4" x 4-7/8".
B4705 - For 4105:
Use with centreline exit devices, aluminum, cylindrical or centreline morits locks. 1-1/8" x 5-7/8".
B4707 - For 4107:
Use with aluminum locks, cylindrical or centreline mortise locks and mortise exit devices. 1-1/4" x 6-7/8"
B4708 - For 4108:
Use with aluminum locks, cylindrical or centreline mortise locks and cenreline exit devices. 1-7/16" x 7-15/16".
F4 & 7 Series Fire-rated commercial Duty Centreline Electric Strikes
F4 & 7 Series Electric Strikes
F4 Series Fire Rated Commercial Duty Centreline Electric Strikes:
for extra-strength in heavy-duty applications and is fire labeled. Unique anti-vibration design prevents manipulation by vibration. Crossed wires are never a problem as the coil is not polarity-conscious. Accommodates 3/4" latch projection (pullman design not included). Enlarged latch cavity width allows compatibility with cylindrical, and centreline moritse locks (including 3-piece anti-friction type) and mortise exit devices. 1-1/2" cut-out dpth accommodates most aluminum and hollow metal frames. Door thicknesses 1-3/8" to 2-3/8". AC/DC input acceptable for all fail secure models. Fully reversible for right or left-hand doors. Standard mounting tabs and fasteners included. ANSI/BHMA A156.31 Grade 1. UL Listed UL 10C fire rated 1.5hr. UL 1034 burglary resistant - highest level 1,000 lbs static strength. ANSI stainless steel faceplate 1-1/4" x 4-7/8". Stainless steel finish.
7 Series Adjustable Electric Strikes:
Body only, faceplates sold separately. RCI's 7 Series electric strikes allow installers to adjust the strike pivot horiszontally for precise alignment. Unique anit-vibration design prevents manipulation by vibration. Crossed wires are never a problem, as the coil is non polarity-concious. Accomodates 5/8" latch protection (pullman design not included). Unique anti-vibration design prevents manipulation by vibration. Enlarged latch cavity width allows compatibility with cylindrical, narrowline aluminum and centreline mortise locks (including 3-piece anti-friction type). 1-1/2" cut out depth accommodates most aluminum and wood frames. Door thickness: 1-3/8" to 2-3/8". AC/DC input acceptable for fail secure modles. Fail secure. Non-handed. Standard mounting tabs, fasteners, and trip plate included. 1/8" horizontal adjustment. UL listing: UL 1034 burglary resistant, 500lbs of static strength. Modular Design.
7 Series Electric Strikes Faceplates, JIG, & 5 Series Electric Strike
7 Series Electric Strikes Faceplates, JIG, & 5 Series Electric Strike
7 Series Faceplates:
B4714 - For 7114:
Use with centreline exit devices, cylindrical or centreline mortise locks. 1-1/4" x 4-7/8"
B4704 - For 7104:
Use with aluminum, cylindrical or centreline mortise locks and centreline exit devices. 1-1/4" x 4-7/8".
B4705 - For 7105:
Use with centreline exit devices, aluminum, cylindrical or centreline mortise locks. 1-1/8" x 5-7/8".
B4707 - For 7107:
Use with aluminum locks, cylindrical or centreline mortise locks and mortise exit devices.
B4708 - For 7108:
Use with aluminum locks, cylindrical or centreline mortise locks and centreline exit devices. 1-7/16" x 7-15/16".
4 & 7 Series Frame Prep Jig:
Improves installation accuracy, and aids in cutting of aluminum or metal frames. Frame prep jig for ANSI-sized electric strike. For series 4104/4304, 4114/4314, 7104/7304 or 7114/7314.
RCI Rutherford Controls 6 Series Heavy Duty Universal Electric Strikes & Universal Electric Faceplates
Universal electric strike standard body or low-profile body
6 Series Heavy Duty Universal Electric Strikes:
Body only, faceplates sold separately. Field selectable lock mode - choose fail secure or fail safe with the turn of a dial (fail secure mode requires DC voltage). Field selectable voltage input - accommodates 12 or 24VDC, and 12 to 24VAC, and even 16VAC in one strike. Low profile version (L) is shallow enough for use with narrow stile aluminum frames only 1-1/16" deep, standard version (S) requires 1-3/16" frame depth. 1/4" horizontal adjustment. Modular "plug-in" wire connectors for fast hook-up. Tested to over 1,000,000 cycles. UL listed 1034 burglary resistant, 1500lbs of static strength. Modular "plug-in" wire connectors for fast hook-up.
AS65LMKM:
The latch monitor is a SPDT switch with a trigger in the strike cavity to indicate the presence of a latch bolt when the door is closed. The keeper monitor is a SPDT switch that will indicate when the keeper moves from the closed (normal) postition to the open position. NOTE: LMKM switches are rated at 2amps at 24VDC.
6 Series Universal Strike Faceplates:
B614 32D - For S6514 - Standard/L6514-Low
Use with centreline exit devices, cylindrical or centreline mortise locks. 1-1/4" x 4-7/8".
B604 32D - For S6504-Standard/L6504-Low:
Use with aluminum, cylindrical or centreline morise locks and centreline exit devices. 1-1/4" x 4-7/8".
B605 32D - For S6505-Standard/L6505-Low
Use with aluminum locks, cylindrical or centreline mortise locks and mortise exit devices. 1-1/4" x 6-7/8".
B608 32D - For S6508-Standard/L6508-Low
Use with aluminum locks, cylindrical or centreline exit devices. 1-7/16" x 7-15/16".
This electric strike is the go-to preferred electric strike by our mobile installation team. Field selectable voltage input accommodatess 12 or 24 VDC, 12 to 24 VAC and even 16 VAC in one strike. Choose fail-secure or fail-safe with the turn of a dial. Fail-secure mode requires DC voltage. Lock Surgeon's electric strike service counter technician can recommend the appropriate electric strike that will be accepted in your door frame to replace your current electric strike with a new electric strike that will match your apartment or business needs.
F2 Series Fire Rated & 15 Series Economy Electric Strikes
F2 Series Fire Rated & 15 Series Economy Electric Strikes
F2 Series Fire Rated Commercial Duty Centreline Electric strikes:
Modular design allows compatibility with most locks without having to order special faceplates. Includes offset and centreline faceplates. Adjustable deadbolt keeper deadlatch ramp. Heavy-duty stainless steel construction. Fits HES 1006 (1003) frome cutout. Accommodates 3/4" latch projection. Faceplate and anti-tamper security screws included for centreline latch entry. Unique sliding shim design for up to 1/8" (3mm) horizontal adjustment for misaligned frames. Vertical adjustability of strike for precise postioning of lockset. Accommodates up to 1" deadbolt; night-latch function only, bolt will not release. Field selectable voltage input - accommodates 12 or 24VDC and 12 to 24VAC.
Hex and security driver bit included. Low current draw (0.19amps at 24VDC). "Cool Keeper" solenoid design prevents keeper from heating up. Plug-in wire connector. Trim-plate included. Non-handed. UL 10C, 3hr fire-rated (fail secure). UL Listing 1034, burglary resistant listed, 1500 lbs static strength. Factory tested to meet ANSI/BHMA 156.31 for strength and endurance. Non fire-rated version (fail safe) available by special order: Model 2364.
15 Series Economy Strikes:
For light use with narrowline aluminum cylindrical locks.
15BS:
Replaces Edwards 9. For special offset latch entry. Voltage 11-16 VAC. Size 1-1/4" x 5-7/8". 5/8" latch projection. Fail secure. For hollow metal, aluminum or wood frames. Non-handed.
15CA:
Replaces Peso 710. For centreline latch entry. Voltage 11-16 VAC. Size 1-1/4" x 5-7/8". 5/8" latch projection. Fail Secure. For hollow metal, aluminum or wood frames.

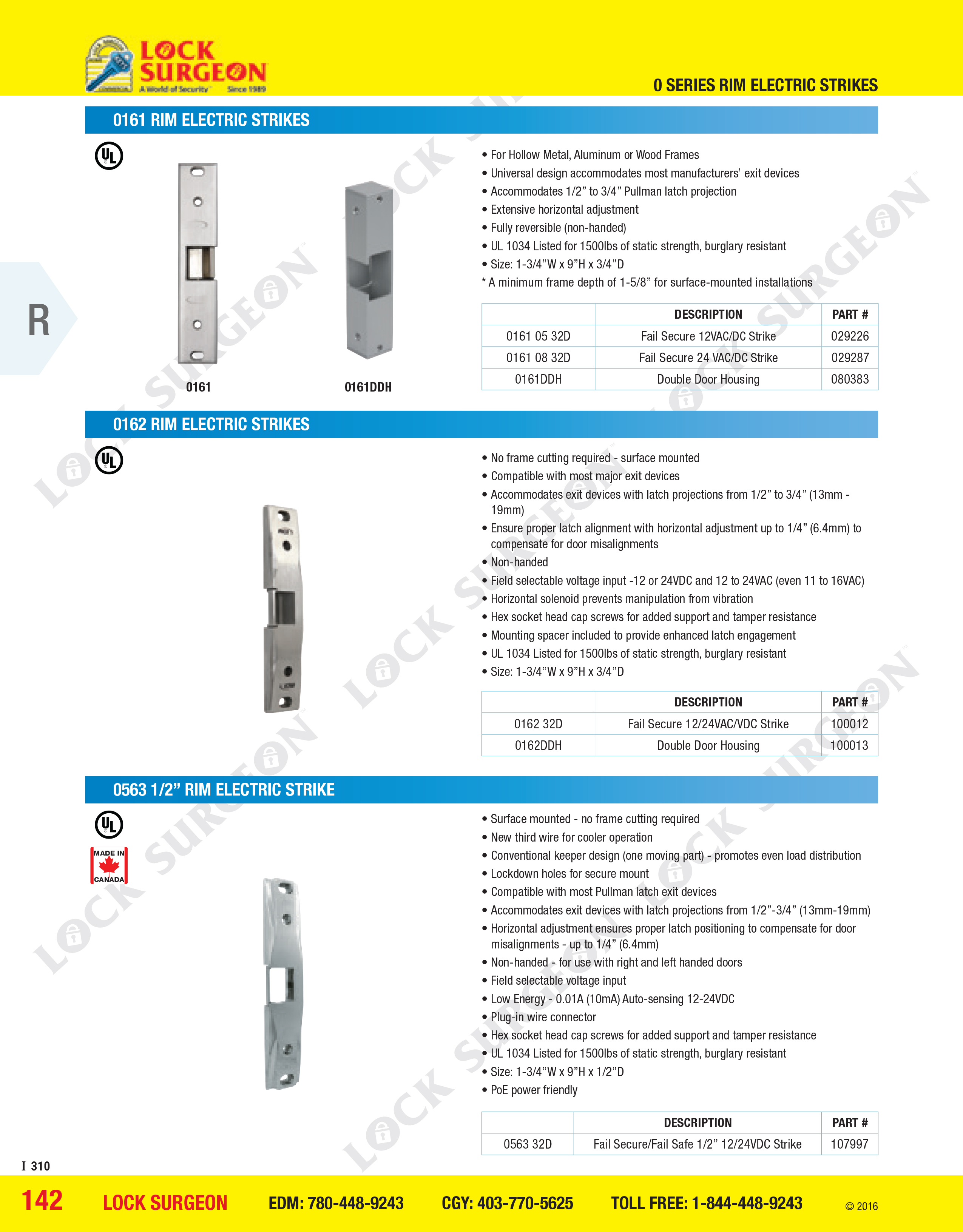

0 Series Rim Electric Strikes
0 Series Rim Electric Strikes
0161 Rim Electric Strikes:
For hollow metal, aluminum or wood frames. Universal design accomodates most manufacturere's exit devices. Accommodates 1/2" to 3/4" Pullman latch projection. Extensive horizontal adjustment. Fully reversible (non-handed). UL 1034 Listed for 1500lbs of static strength, burglary resistant. Size 1-3/4"W x 9"H x 3/4"D. A minimum frame depth of 1-5/8" for surface-mounted installations.
0162 Rim Electric Strikes:
No frame cutting required - surface mounted. Compatible with most major exit devices. Accommodates exit devices with latch projections from 1/2" to 3/4"(13mm - 19mm). Ensure proper latch alignment with horizontal adjustment up to 1/4"(6.4mm) to compensate for door misalignments. Non-handed. Field selectable voltage input - 12 or 24VDC and 12 to 24VAC 9even 11 to 16VAC). Horizontal solenoid prevents manipulation from vibration. Hex socket head cap screws for added support and tamper resistance. Mounting spacer included to provide enhanced latch engagement. UL 1034 Listed for 1500lbs of static strength, burglary resistant. Size 1-3/4"W x 9"H x 3/4"D.
0563 1/2" Rim Electric Strike:
Surface mounted - no frame cutting required. New third wire for cooler operation. Conventional keeper design (one moving part) - promotes even load distribution. Lockdown holes for secure mount. Compatible with most Pullman latch exit devices. Accommodates exit devices with latch projections from 1/2" - 3/4" (13mm - 19mm). Horizontal adjustments ensures proper latch positioning to compensated for door misalignments - up to 1/4" (6.4mm). Non-handed - for use with right and left handed doors. Field selectable voltage input. Low energy - 0.01A(10mA), auto-sensing 12-24VDC. Plug-in wire connector. Hex socket head cap screws for added support and tamper resistance. UL 1034 Listed for 1500lbs of static strength, burglary resistant. Size 1-3/4"W x 9"H x 1/2"D. PoE power friendly.
Magnetic Locks - 8 Series Multimag®, Minimag® & Micromag®
8 Series Multimag® Minimag® & Micromag®
8 Series Multimag®:
1500lbs holding force per magnet. Adjustable keyhole mounting bracket for simplified installation. Adjustable keyhole mounting bracket for simplified installation. Built-in delay (instant release with adjustable relock, programmable from 0-110secs). Field selectable voltage - 12/24VDC. Convenient plug-in wiring terminals. Stabliazing 4-bolt "Drop stop" mag mounting (8-bolt for 8320). MOV surge protection. No residual magnetism. Low energy consumption. Hardened steel armature nut. Self-drilling tek™ fasteners.
8310:
Single outswinging interior or perimeter doors. Size 1-5/8" x 2-7/8" x 10-1/2". Delayed egress electromagnetic lock available by special order: Model DE8310.
DSS Option - Door Status Sensor:
Double outswinging interior or perimeter doors without mullion. Size 1-5/8" x 2-7/8" x 21".
MiniMag® & MicroMag®:
For interior use only. Brushed anodized aluminum finish. Low energy consumption. Field-selectable voltage 12/24VDC. MOV surge protection. Hardened steel armature nut. No residual magnetism. Low profile design.
8360 - Mortise MiniMag®:
Remote lock status - RLS. Holding force 750lbs. 1-1/16" x 1-1/2" x 9".
8371 - Surface MiniMag®:
Holding force 750lbs. 1"x 1-7/8" x 9-3/8".
8375 - Surface MicroMag®:
Holding force 250lbs. 13/16" x 1-1/2" x 6-17/32".
Magnetic Gate Lock, Electronic Cabinet Lock & Power Supply Accessory
8380 Gatemag® magnetic gate lock, Electric Cabinet Lock & 365 day-99 Event Timer
8380 GateMag® Magnetic Gate Lock:
Up to 1500lbs holding force. No residual magnetism. Weather-resistant stainless steel housing. Versatile face or bottom mounting. Built in RLS(remote lock status). Field selectable voltage 12/24VDC. Throughbolt mounting. 6-1/2" wire cable. Conduit fitting 1/2" inside dieameter, 3/4" outside diameter. MOV surge protection. cULus Listed.
Electric Cabinet Lock:
Field selectable fail secure or fail safe assembly. Field selectable dual voltage 12/24VDC operation. Plated (rust-resistant) self adjusting steel locking pin assembly. 440lbs holding force. Low energy consumption (184mA at 12VDC, 90mA at 24VDC). Includes hardware kit. For sliding or swinging cabinet doors. Elongated holes on tongue for adjustable mounting. Dual Monitoring option available by special order: Model 3513DM.
365 Day, 99 Event Timer:
2 momentary or latching SPDT relays to control locks and other electronically controlled devices or circuits. 40 holidays and 99 user events. Automatic voltage selection 12 to 24VAC or DC. Large alpha-numeric Backlit display for easy programming 16 characters by 2 line LCD. Lithium battery included. Ideal for openings requiring scheduled access. Size 3-3/4" x 4-11/16" x 1".
Power Supply & Power Supply Accessories
10 Series 1.5 AMP power supplies, plug & wire-in transformers & rectifier
10 Series 1.5 Amp Power Supplies:
Field selectable voltage 12/24VDC. Exceptional brown out protection. Surge protection input. Class 2 fused DC input. AC and DC visual indication. Precise battery regulation for lead acid batteries. Online batteries provide no drop switch over an AC failure. Form C relay to indicate AC failure.
Input: AC input 115VAC/60Hz. AC visual indicator.
Output: Normal output voltage 12VDC or 24VDC. 1.5amp supply current at 12VDC. 1amp supply current at 24VDC. Thermally protected DC output. AC fail relay. Visual indication. Size 12.5" x 12.5" x 4".
Certifications: UL listed. Access control unit power supply. Power distribution modules and 24V to 12V DC convertor are listed subassamblies.
Applications: To power access control systems. To power electric locking systems. To power electromagnetic locking systems.
Plug & Wire-in Transformers & Rectifier:
T1002/T1008 - Plug-in Transformer:
Plug into standard 115VAC outlet to provide low voltage AC output. Thermally protected to prevent overload due to short. Transformer will need to be replaced once fuse is blown. UL Listed. T1102 - size: 2" x 2-1/4" x 3-1/4", T1108 - size: 2-3/8" x 2" x 2".
T1009 - Wire-in Transformer:
For permanent installations requiring hard wiring. Size: 2-3/8" x 2" x 2".
R10R1 - Bridge Rectifiers:
Bridge rectifier changes AC power source to DC output for DC strikes & mag-locks.

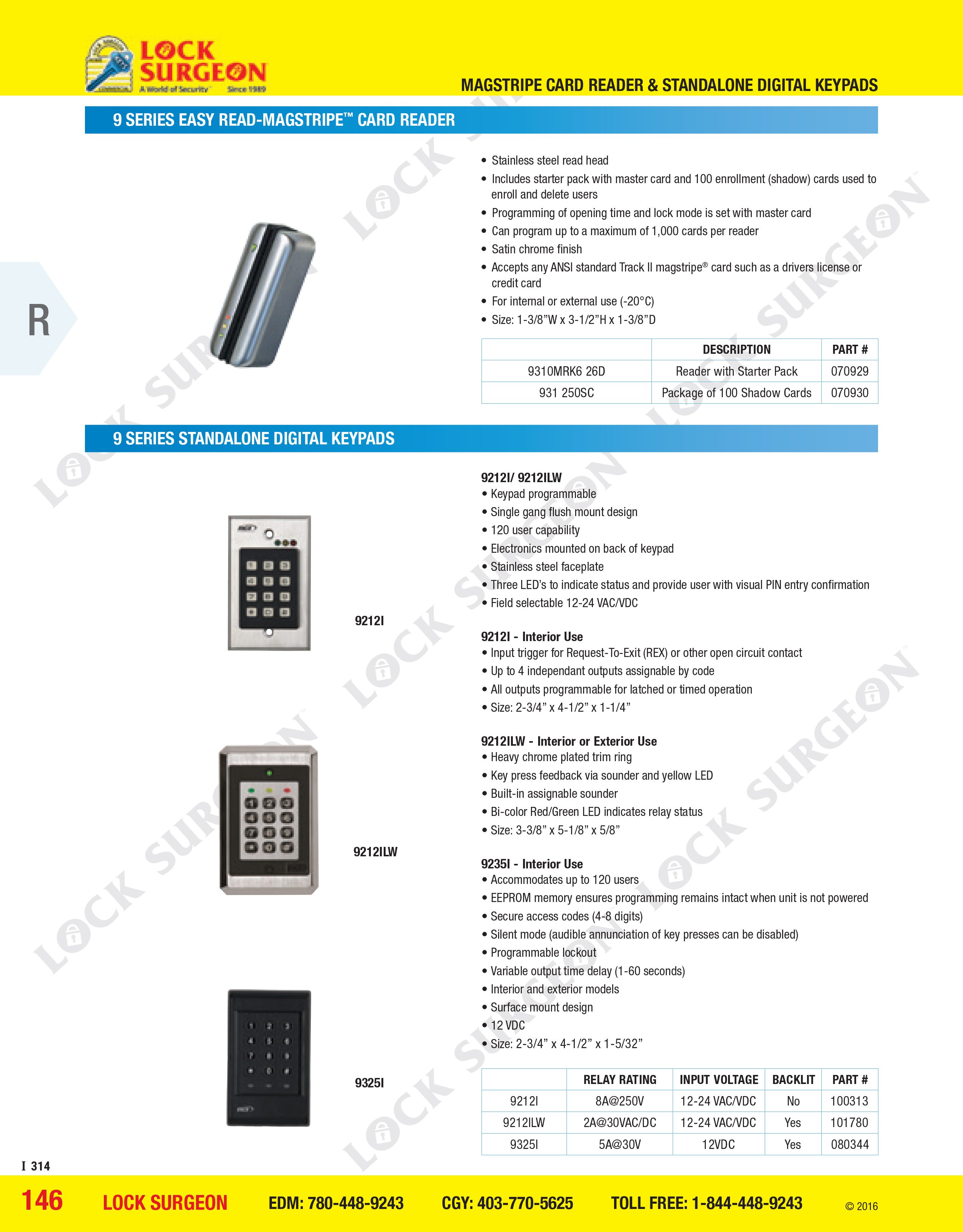

Magstripe™ Card Reader & Standalone Digital Keypads
Series 9 easy-read Magstripe™ card reader & standalone digital keypads
9 Series Easy Read-MagStripe™ Card Reader:
Stainless steel read head. Includes starter pack with master card and 100 enrollment (shadow) cards used to enroll and delete users. Programming of opening time and lock mode is set with master card. Can program up to a maximum of 1,000 cards per reader. Satin chrome finish. Accepts any ANSI standard Track II MagStripe® card such as drivers license or credit card. For internal or external use (-20ºC). Size: 1-3/8"W x 3-1/2"H x 1-3/8"D.
9 Series Standalone Digital Keypads:
9212I/9212ILW:
Keypad programmable. Single gang flush mount design. 120 user capability. Electronics mounted on back of keypad. Stainless steel faceplate. Three LED's to indicate status and provide user with visual PIN entry confirmation. Field selectable 12-24 VAC/VDC.
9212I - Interior Use:
Input trigger for Request-To-Exit (REX) or other open circuit contact. Up to 4 independent outputs assignable by code. All outputs programmable for latched or timed operation. Size: 2-3/4" x 4-1/2" x 1-1/4".
9212ILW - Interior or Exterior Use:
Heavy chrome plated trim ring. Key press feedback via sounder and yellow LED. Built-in assignable sounder. Bi-color Red/Green LED indicates relay status. Size: 3-3/8" x 5-1/8" x 5/8".
9235I - Interior Use:
Accommodates up to 120 users. EEPROM memory ensures programming remains intact when unit is not powered. Secure access codes (4-8 digits). Silent mode (audible annunciation of key presses can be disabled). Progammable lockout. Variable output time delay (1-60 seconds). Interior and exterior models. Surface mount design. 12VDC. Size: 2-3/4" x 4-1/2" x 1-5/32".
Key Switches & Buttons
Tamper Resistant key switches, handicap exit buttons & switches
Tamper Resistant Key Switches:
Extruded clear aluminum 1/4" plate with beveled edges. UL rated switches are SPDT and can be used for Normally Opened (NO) or Normally Closed (NC) applications. Contacts are rated at 3A at 125VAC, 1A at 250VAC. Can mount 2 switches on easy lock-down dual-switch bracket. For 1-1/8" mortise cylinders with straight or clover cams (not supplied). Supplied with spanner screws & wrench.
960:
Size: 3" x 4-3/4".
960N:
Size: 1-5/8" x 4-3/4".
Handicap Exit Buttons & Switches:
Momentary action switch standard.
909:
2-3/8" x 2-3/8". Surface mount under desk or counter for concealment.
916B/916NB:
916B: 3" x 4-3/4".
916NB: 1-5/8" x 4-3/4".
Tamper resistant handicap blank blue button. Ideal for Request-To-Exit (REX) applications. 20 gauge stainless steel faceplate.
917:
2-3/4" x 4-1/2". Easy touch exit push button 12-40 VDC. Totally weatherproof. Solid state/no moving parts. Pressure sensitive.
950HP4/6:
4-1/2" or 6" round. Ideal for Request-To-Exit (REX) applications. Stainless steel faceplate.
Standalone Keypad & Proximity Controllers
Outdoor Mullion Backlit Pin/Proximity standalone controller & Anti-vandal button Pin/proximity standalone controllers
Outdoor Mullion Backlit Pin/Proximity Standalone Controller:
500 dual code users. 2x3 amp relays. 2 inputs with user programmable logic. 2 tri-coloured LED indicators. Fully-potted, meets IP65. 3 user levels and 3 modes of operation. Optical case and back tamper protection. Lockout feature on wrong entries (keypad/card tamper). Input voltage VDC 12-24 VDC; 16-24 VAC. Maximum input current 12VDC at 160mA. Standby input current 12VDC at 95mA. Maximum read range 3.15". Operating temperature: -32ºC to +63ºC. Operating humidity 0 to 95% (non-condensing). Outdoor usage: Weather resistant, meets IP65. Size 5.33L x 1.74"W x 1.12"D.
Anti-Vandal Metal Button PIN/Proximity Standalone Controllers:
500 dual code users. 2x3 amp relays. 2 inputs with user programmable logic. 2 tri-coloured LED indicators. Fully-potted, meets IP65. 3 user levels and 3 modes of operation. Optical case and back tamper protection. Lockout feature on wrong entries (keypad/card tamper). Input voltage VDC: 12-24 VDC; 16-24 VAC. Maximum input current 12 VDC at 160mA. Standby input current 12 VDC at 95mA. Maximum read range: 3.15". Operating temperature: -32ºC to +63ºC. Operating humidity: 0 to 95% (non-condensing). Outdoor usage: Weather resistant, meets IP65. Size: 5.33"L x 1.74"W x 1.12"D.
Anti-Vandal Metal Button PIN/Proximity Standalone Controllers:
500 dual code users. 2x2 amp relays. 3 user levels and 3 operation modes. Selectable PIN code length 4-8 digits. Auxiliary input and auxiliary output. Input for Request-To-Exit (REX) button. 2 tri-coloured LED indicators. Fully-potted, meets IP65. Optical case and back tamper protection. Lockout feature on wrong entries (keypad/card tamper). Terminal block interface for wiring. Maximum relay current 2A. Operating temperatures: -20ºC to +65ºC. Weather resistant, meets IP54. Size: 4.72"L x 2.8"W x 1.17"D. Rugged Metal Construction.
AC Q41H:
Pin only. Input voltage VDC: 12-24VDC; VAC: 12-24 VDC. Maximum input current 12VDC at 100mA. Standby input current 12VDC at 40mA.
AC Q42H:
Pin/proximity. Input voltage VDC: 12-24 VDC; VAC: 16-24 VDC. Maximum input current 12 VDC at 125mA. Built-in 125 kHz RFID.
Edmonton South KIK, LFIC & Rim Cylinders
6 Line key-in-kob cylinder, 10 Line key-in-knob cylinder, 6300 Large format interchangeable removable core cylinder & 34-Series rim cylinder
6 Line Key-In-Fob Cylinder:
For use with Sargent 6 line series knob locks. 6 pin standard. Supplied with 2 nickel-silver keys. Satin nickel finish.
10 Line Key-In-Fob Cylinder:
For use with Sargent 10 line series; 7 line series & 6500 series. 6 pin standard. Supplied with 2 nickel-silver keys. Satin nickel finish.
6300 Large Format Interchangeable Removable Core Cylinder:
Unassembled core for field rekeying. Includes control sleeve and two key blanks. Springs and pins to be ordered separately. Uncombinated cores.
34 Series Rim Cylinder:
27/32" screw pattern for through-bolted exit devices. Furnished with rosette and compression spring, and "break-off" screws and back plate. 6 pin Horizontal tail piece.
Mortise Cylinders Cam & Key Blanks
40-Series mortise cylinder, 40-Series mortise cam & key blanks
40 Series Mortise Cylinder:
Furnished with rosette and compression spring. Supplied with Sargent standard offset cam. 6 pin standard. Solid brass cylinder. 1-1/8" length.
Key Blanks:
Nickel silver key blanks.
Schlage Mortise Cylinder Cams & Key Blanks
Mortise cylinder cams & key blanks
Mortise Cylinder Cams:
Classic and conventional. Everest an Primus. Modular Cylinder cams.
Key Blanks:
Everest 29 and Primus XP - 6 pin S123, Level 8. Everest 29 - 6 pin S123. Classic - 5 and 6 pin. Control Key blanks C and E.
Von Duprin 5100, 6100 & 6200 Electric Strikes
5100 Multi-function series - 6100 & 6200 heavy duty strikes
5100 Multi-function Series:
Voltage 12 or 24VDC continuous duty. Fail safe or fail secure, easily changed in less than thirty seconds. Includes mounting tabs and neoprene filler plate. 1300lbs of holding strength. Keeper depth of 1/2": Accommodates latches up to 5/8" throw. Tested to over one million cycles. Faceplates included: 4-7/8" ANSI square corner, 7-15/16" long, round corner wood frame prep. Adjustable keeper provides a snug fit and reduces pressure from the door on the strike.
6100 & 6200 Heavy Duty Strikes:
Stainless steel construction. Accepts 3/4" throw latchbolt. Non-handed. Fail secure. Horizontally adjustable. Plug connectors.
6111:
For use with rim exit devices on single doors or double doors with mullion applications. For hollow metal, aluminum or wood.
6112:
For use with rim exit devices on single doors applications. For hollow metal, aluminum or wood.
6211:
Electric strike for use with mortise locks without deadbolt or cylindrical locks on single door, hollow metal frames.
Stop Kick-down, Wind Chain Stop, Latch Guards & ASA Strikes
Miscellaneous Items for Aluminum Glass Doors
Stop Kick Down:
Zinc cast door stop finished in chrome. Size 4-3/4" from pivot point. Furnished with rubber tip.
Wind Chain Stop:
Heavy-duty steel welded chain. Two compression-coil springs. Zinc die-cast mounting brackets. Grey vinyl cover. Finish: zinc plated. Length: 25-1/2".
Latch Guards:
LG111: Non-handed unit for narrow stile aluminum glass doors.
804: Non-handed unit has a cutout for knob rose. Fastened with 4 through-bolts.
ASA Strikes:
Meets the ASA strike specification size of A115.2 of 4-7/8"H x 1-1/4"W. Used for knob & lever sets in commercial applications.
Knob & Lever Guards, Gate Latch, Cabinet Handles & Freezer Handles
Knob and lever guard, secret gate latches, cabinet handles T&L, freezer handles
Knob & Lever Guard:
Designed to prevent "wrenching" of knobs & levers. Made of aircraft aluminum and powder coated for long life. Built-in handle allows the door to easily be opened.
Secret Gate Latch:
For Dutch door applications and counters. Case size is 2" x 2-3/8" with 3/4" strike.
Cabinet Handles - 'T' & 'L':
Handles can be used for a variety of applications including: storage cabinets, locking containers, truck caps & garage doors.
Freezer Handles:
1 0056 L06021: Bolt-type tongue provides positive locking action. Optional adjustable roller strike. Can be locked with a padlock (not included).
1 0173 C00004: Positive latching keeps door shut tight; guards against pop-opens. Cylinder locking with strike. Two-way adjustment compensates for door sag and gasket wear. Replaces discontinued National C8765 unit.
Pad-bolts, Barrel-bolts, Push Plates, Pull Plates & Flush Bolts
Miscellaneous Products for Doors
Padbolts & Barrel Bolts:
168K: 5" extra heavy duty bolt accepts padlock (not included). Padlock hole is 1/2". 1-3/4" bolt-throw.
201A: Solid brass barrel bolt. 19/32" throw. Multiple sizes available.
1068: 4-1/2" heavy duty bolt accepts padlock (not included). Padlock hole is 15/32". 1-3/4" bolt-throw.
Push & Pull Plates:
1410: Push/pull plate combination with 9" pull mounted on a 4" x 16" plate. Aluminum finish.
H1413: Pull handle only.
Flush Bolts:
For keeping the inactive door of a pair of doors stationary. DC840 supplied in pairs. DC860 sold individually.
5" Deadbolt, Deadlatch, Cylinder, Cylinder Guard, Curved Shims & Mailbox Parts
Miscellaneous Parts for Door Deadbolts, Deadlatchs, Cylinders, Cylinder Guards.
G3 5" Deadbolt for Dorex. Stainless steel. G3 5" Deadlatch for Dorex. Stainless Steel.
Cylnider & Cylinder Guard:
732: 1" cylinder for Adams Rite narrow stile locks supplied with trim ring.
5510: Heavy aluminum plate attaches to door with 4 steel 3/16" pop rivets (included). 1/4" cylinder recess. Measures 4-1/32"H x 1W.
Curved Shims:
Facilitates removing a plug from a cylinder when the original keys are not available. Package of 25.
Riopel Mailbox Parts:
Riopel manufactures a full line of products for residential, commercial, office and institutional buildings. All of these products are available by special order from IDN Canada. Call for technical assistance, shop drawings or pricing.
3950 & 3953: Mailbox includes spring clip for mounting. For 1000, 2000 & 3000 series mailbox units.
R115: Switch box accepts Crown Lock (supplied by Canada Post). Size 6"H x 2-3/8"W.
WARRANTY
Sometimes Things Happen
No one likes it when things go wrong, no one more than us, but if it does check out our Warranty
